<virtual so future plugins can inherit from multiple table base classes More...

#include <otsdaq/TablePlugins/ARTDAQTableBase/ARTDAQTableBase.h>

Inheritance diagram for ots::ARTDAQTableBase:

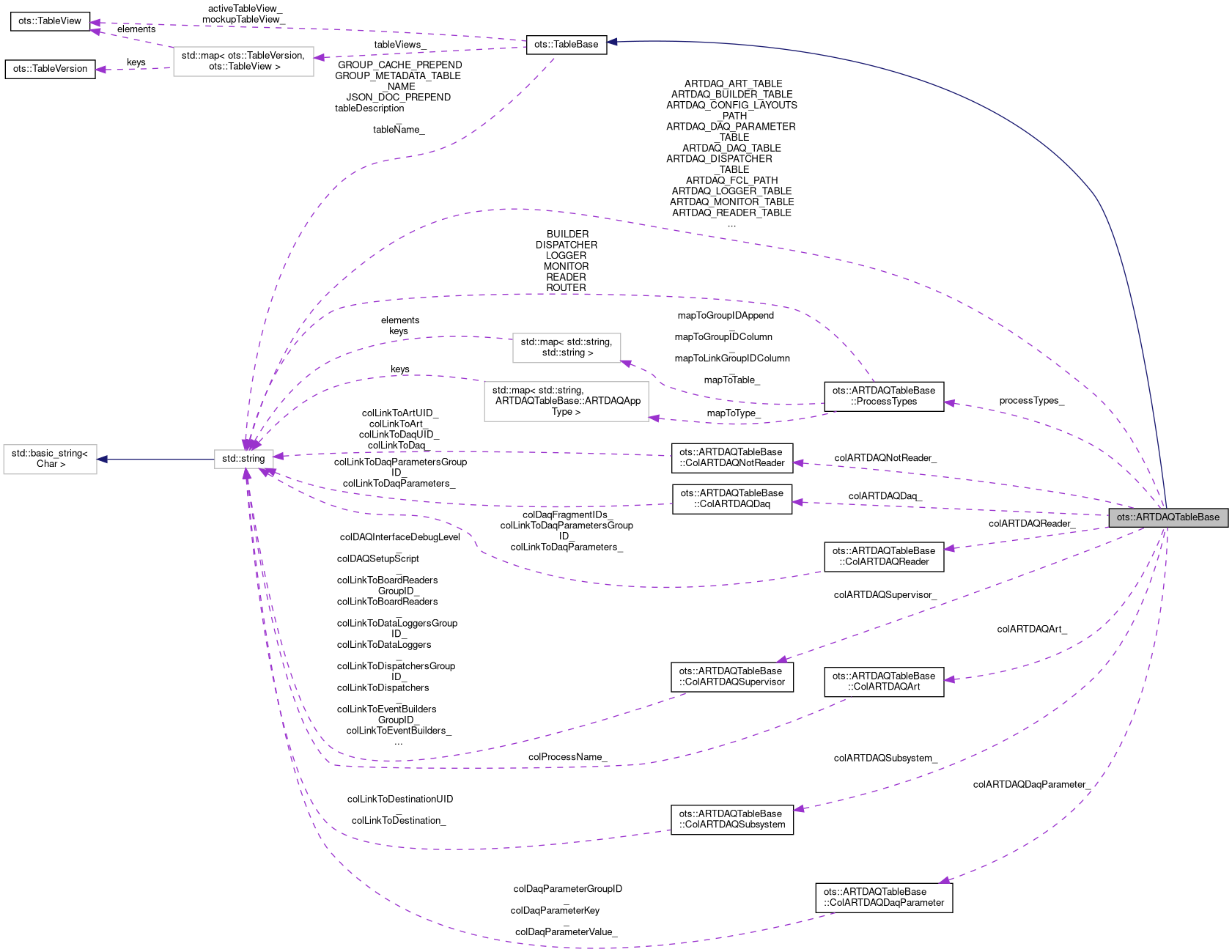

Collaboration diagram for ots::ARTDAQTableBase:

Classes
struct	ARTDAQInfo

struct	ColARTDAQArt
	ARTDAQ ART Column names. More...

struct	ColARTDAQDaq
	ARTDAQ DAQ Column names. More...

struct	ColARTDAQDaqParameter
	ARTDAQ DAQ Parameter Column names. More...

struct	ColARTDAQNotReader
	ARTDAQ Builder/Logger/Dispatcher Column names. More...

struct	ColARTDAQReader
	ARTDAQ Reader Column names. More...

struct	ColARTDAQSubsystem
	ARTDAQ Subsystem Column names. More...

struct	ColARTDAQSupervisor
	ARTDAQ Supervisor Column names. More...

struct	ProcessInfo

struct	ProcessTypes

struct	SubsystemInfo

Public Types
enum class	ARTDAQAppType { BoardReader , EventBuilder , DataLogger , Dispatcher , Monitor , RoutingManager }

enum	{ DEFAULT_MAX_FRAGMENT_SIZE = 1048576 , DEFAULT_ROUTING_TIMEOUT_MS = 1000 , DEFAULT_ROUTING_RETRY_COUNT = 5 }

Public Member Functions
	ARTDAQTableBase ()

	ARTDAQTableBase (std::string tableName, std::string *accumulatedExceptions=0)

Public Member Functions inherited from ots::TableBase
	TableBase (bool specialTable, const std::string &specialTableName)

	TableBase (const std::string &tableName, std::string *accumulatedExceptions=0)

virtual	~TableBase (void)

void	specialMetaTableConstructor (void)
	Methods. More...

virtual void	init (ConfigurationManager *configManager)

void	destroy (void)

void	reset (bool keepTemporaryVersions=false)

void	deactivate (void)

bool	isActive (void)
	isActive

void	print (std::ostream &out=std::cout) const
	always prints active view

std::string	getTypeId (void)

void	setupMockupView (TableVersion version)

void	changeVersionAndActivateView (TableVersion temporaryVersion, TableVersion version)

bool	isStored (const TableVersion &version) const

bool	eraseView (TableVersion version)

void	trimCache (unsigned int trimSize=-1)

void	trimTemporary (TableVersion targetVersion=TableVersion())

TableVersion	checkForDuplicate (TableVersion needleVersion, TableVersion ignoreVersion=TableVersion()) const

bool	diffTwoVersions (TableVersion v1, TableVersion v2, std::stringstream diffReport=0, std::map< std::string, std::vector< std::string >> v1ModifiedRecords=0) const

const std::string &	getTableName (void) const
	Getters.

const std::string &	getTableDescription (void) const

std::set< TableVersion >	getStoredVersions (void) const

const TableView &	getView (TableVersion version=TableVersion(TableVersion::INVALID)) const

TableView *	getViewP (TableVersion version=TableVersion(TableVersion::INVALID))

TableView *	getMockupViewP (void)

const TableVersion &	getViewVersion (void) const
	always the active one

TableView *	getTemporaryView (TableVersion temporaryVersion)

TableVersion	getNextTemporaryVersion (void) const

TableVersion	getNextVersion (void) const

virtual std::string	getStructureStatusAsJSON (ConfigurationManager *configManager) const

void	setTableName (const std::string &tableName)
	Setters.

void	setTableDescription (const std::string &tableDescription)

bool	setActiveView (TableVersion version)

TableVersion	copyView (const TableView &sourceView, TableVersion destinationVersion, const std::string &author, bool looseColumnMatching=false)

TableVersion	mergeViews (const TableView &sourceViewA, const TableView &sourceViewB, TableVersion destinationVersion, const std::string &author, const std::string &mergeApproach, std::map< std::pair< std::string, std::string >, std::string > &uidConversionMap, std::map< std::pair< std::string, std::pair< std::string, std::string > >, std::string > &groupidConversionMap, bool fillRecordConversionMaps, bool applyRecordConversionMaps, bool generateUniqueDataColumns=false, std::stringstream *mergeRepoert=nullptr)

TableVersion	createTemporaryView (TableVersion sourceViewVersion=TableVersion(), TableVersion destTemporaryViewVersion=TableVersion::getNextTemporaryVersion())
	source of -1, from MockUp, else from valid view version More...

bool	latestAndMockupColumnNumberMismatch (void) const

unsigned int	getNumberOfStoredViews (void) const

Static Public Member Functions
static const std::string &	getTypeString (ARTDAQAppType type)

static std::string	getFHICLFilename (ARTDAQAppType type, const std::string &name)

static std::string	getFlatFHICLFilename (ARTDAQAppType type, const std::string &name)

static void	flattenFHICL (ARTDAQAppType type, const std::string &name, std::string *returnFcl=nullptr)

static void	insertParameters (std::ostream &out, std::string &tabStr, std::string &commentStr, ConfigurationTree parameterLink, const std::string &parameterPreamble, bool onlyInsertAtTableParameters=false, bool includeAtTableParameters=false)

static std::string	insertModuleType (std::ostream &out, std::string &tabStr, std::string &commentStr, ConfigurationTree moduleTypeNode)

static void	insertMetricsBlock (std::ostream &out, std::string &tabStr, std::string &commentStr, ConfigurationTree daqNode)
	insertMetricsBlock

static void	insertArtProcessBlock (std::ostream &out, std::string &tabStr, std::string &commentStr, ConfigurationTree art, ConfigurationTree subsystemLink=ConfigurationTree(), size_t routingTimeoutMs=DEFAULT_ROUTING_TIMEOUT_MS, size_t routingRetryCount=DEFAULT_ROUTING_RETRY_COUNT)

static void	outputBoardReaderFHICL (const ConfigurationTree &boardReaderNode, size_t maxFragmentSizeBytes=DEFAULT_MAX_FRAGMENT_SIZE, size_t routingTimeoutMs=DEFAULT_ROUTING_TIMEOUT_MS, size_t routingRetryCount=DEFAULT_ROUTING_RETRY_COUNT)

static void	outputDataReceiverFHICL (const ConfigurationTree &receiverNode, ARTDAQAppType appType, size_t maxFragmentSizeBytes=DEFAULT_MAX_FRAGMENT_SIZE, size_t routingTimeoutMs=DEFAULT_ROUTING_TIMEOUT_MS, size_t routingRetryCount=DEFAULT_ROUTING_RETRY_COUNT, std::string *returnFcl=nullptr)

static void	outputRoutingManagerFHICL (const ConfigurationTree &routingManagerNode, size_t routingTimeoutMs=DEFAULT_ROUTING_TIMEOUT_MS, size_t routingRetryCount=DEFAULT_ROUTING_RETRY_COUNT)

static void	outputOnlineMonitorFHICL (const ConfigurationTree &onlineMonitorNode)

static bool	isARTDAQEnabled (const ConfigurationManager *cfgMgr)
	isARTDAQEnabled

static const ARTDAQInfo &	extractARTDAQInfo (ConfigurationTree artdaqSupervisorNode, bool getStatusFalseNodes=false, bool doWriteFHiCL=false, size_t maxFragmentSizeBytes=DEFAULT_MAX_FRAGMENT_SIZE, size_t routingTimeoutMs=DEFAULT_ROUTING_TIMEOUT_MS, size_t routingRetryCount=DEFAULT_ROUTING_RETRY_COUNT, ProgressBar *progressBar=0)

static const ARTDAQInfo &	getARTDAQSystem (ConfigurationManagerRW *cfgMgr, std::map< std::string, std::map< std::string, std::vector< std::string >>> &nodeTypeToObjectMap, std::map< std::string, std::string > &subsystemObjectMap, std::vector< std::string > &artdaqSupervisoInfo)

static void	setAndActivateARTDAQSystem (ConfigurationManagerRW *cfgMgr, const std::map< std::string, std::map< std::string, std::vector< std::string >>> &nodeTypeToObjectMap, const std::map< std::string, std::string > &subsystemObjectMap)

Static Public Member Functions inherited from ots::TableBase
static std::string	convertToCaps (std::string &str, bool isConfigName=false)

Static Public Attributes
static const std::string	ARTDAQ_FCL_PATH = std::string(__ENV__("USER_DATA")) + "/" + "ARTDAQConfigurations/"

static const std::string	ARTDAQ_CONFIG_LAYOUTS_PATH = std::string(__ENV__("SERVICE_DATA_PATH")) + "/ConfigurationGUI_artdaqLayouts/"

static const bool	ARTDAQ_DONOTWRITE_FCL = ((getenv("OTS_FCL_DONOTWRITE") == ((void *)0) ) ? false : true)

static const std::string	ARTDAQ_SUPERVISOR_CLASS = "ots::ARTDAQSupervisor"

static const std::string	ARTDAQ_SUPERVISOR_TABLE = "ARTDAQSupervisorTable"

static const std::string	ARTDAQ_READER_TABLE = "ARTDAQBoardReaderTable"

static const std::string	ARTDAQ_BUILDER_TABLE = "ARTDAQEventBuilderTable"

static const std::string	ARTDAQ_LOGGER_TABLE = "ARTDAQDataLoggerTable"

static const std::string	ARTDAQ_DISPATCHER_TABLE = "ARTDAQDispatcherTable"

static const std::string	ARTDAQ_MONITOR_TABLE = "ARTDAQMonitorTable"

static const std::string	ARTDAQ_ROUTER_TABLE = "ARTDAQRoutingManagerTable"

static const std::string	ARTDAQ_SUBSYSTEM_TABLE = "ARTDAQSubsystemTable"

static const std::string	ARTDAQ_DAQ_TABLE = "ARTDAQDaqTable"

static const std::string	ARTDAQ_DAQ_PARAMETER_TABLE = "ARTDAQDaqParameterTable"

static const std::string	ARTDAQ_ART_TABLE = "ARTDAQArtTable"

static const std::string	ARTDAQ_TYPE_TABLE_HOSTNAME = "ExecutionHostname"

static const std::string	ARTDAQ_TYPE_TABLE_ALLOWED_PROCESSORS = "AllowedProcessors"

static const std::string	ARTDAQ_TYPE_TABLE_SUBSYSTEM_LINK = "SubsystemLink"

static const std::string	ARTDAQ_TYPE_TABLE_SUBSYSTEM_LINK_UID = "SubsystemLinkUID"

static const int	NULL_SUBSYSTEM_DESTINATION = 0

static const std::string	NULL_SUBSYSTEM_DESTINATION_LABEL = "nullDestinationSubsystem"

static struct ots::ARTDAQTableBase::ProcessTypes	processTypes_
	Note!!!! processTypes_ must be instantiate after the static artdaq table names (to construct map in constructor in .h)

static struct ots::ARTDAQTableBase::ColARTDAQSupervisor	colARTDAQSupervisor_

static struct ots::ARTDAQTableBase::ColARTDAQSubsystem	colARTDAQSubsystem_

static struct ots::ARTDAQTableBase::ColARTDAQReader	colARTDAQReader_

static struct ots::ARTDAQTableBase::ColARTDAQNotReader	colARTDAQNotReader_

static struct ots::ARTDAQTableBase::ColARTDAQDaq	colARTDAQDaq_

static struct ots::ARTDAQTableBase::ColARTDAQDaqParameter	colARTDAQDaqParameter_

static struct ots::ARTDAQTableBase::ColARTDAQArt	colARTDAQArt_

Static Public Attributes inherited from ots::TableBase
static const std::string	GROUP_CACHE_PREPEND = "GroupCache_"

static const std::string	JSON_DOC_PREPEND = "JSONDoc_"

static const std::string	GROUP_METADATA_TABLE_NAME = "TableGroupMetadata"

Additional Inherited Members
Public Attributes inherited from ots::TableBase
const unsigned int	MAX_VIEWS_IN_CACHE

Protected Attributes inherited from ots::TableBase
std::string	tableName_

std::string	tableDescription_

TableView *	activeTableView_

TableView	mockupTableView_

std::map< TableVersion, TableView >	tableViews_

Detailed Description

<virtual so future plugins can inherit from multiple table base classes

Definition at line 18 of file ARTDAQTableBase.h.

Constructor & Destructor Documentation

◆ ARTDAQTableBase() [1/2]

ARTDAQTableBase::ARTDAQTableBase ( void )

ARTDAQTableBase Default constructor should never be used because table type is lost

Definition at line 101 of file ARTDAQTableBase.cc.

◆ ARTDAQTableBase() [2/2]

ARTDAQTableBase::ARTDAQTableBase	(	std::string	tableName,
		std::string *	accumulatedExceptions = `0`
	)

TableBase If a valid string pointer is passed in accumulatedExceptions then allowIllegalColumns is set for InfoReader If accumulatedExceptions pointer = 0, then illegal columns throw std::runtime_error exception

Definition at line 75 of file ARTDAQTableBase.cc.

Member Function Documentation

◆ getARTDAQSystem()

const ARTDAQTableBase::ARTDAQInfo & ARTDAQTableBase::getARTDAQSystem	(	ConfigurationManagerRW *	cfgMgr,
		std::map< std::string, std::map< std::string, std::vector< std::string >>> &	nodeTypeToObjectMap,
		std::map< std::string, std::string > &	subsystemObjectMap,
		std::vector< std::string > &	artdaqSupervisoInfo
	)

static

getARTDAQSystem

static function to retrive the active ARTDAQ system configuration.

Subsystem map to destination subsystem name. Node properties: {status,hostname,subsystemName,(nodeArrString),(hostnameArrString),(hostnameFixedWidth)} artdaqSupervisoInfo: {name, status, context address, context port}

Definition at line 2501 of file ARTDAQTableBase.cc.

◆ insertArtProcessBlock()

void ARTDAQTableBase::insertArtProcessBlock	(	std::ostream &	out,
		std::string &	tabStr,
		std::string &	commentStr,
		ConfigurationTree	art,
		ConfigurationTree	subsystemLink = `ConfigurationTree()`,
		size_t	routingTimeoutMs = `DEFAULT_ROUTING_TIMEOUT_MS`,
		size_t	routingRetryCount = `DEFAULT_ROUTING_RETRY_COUNT`
	)

static

insertArtProcessBlock Note: currently selfRank and selfPort are unused by artdaq fcl

Definition at line 1125 of file ARTDAQTableBase.cc.

◆ insertModuleType()

std::string ARTDAQTableBase::insertModuleType	(	std::ostream &	out,
		std::string &	tabStr,
		std::string &	commentStr,
		ConfigurationTree	moduleTypeNode
	)

static

insertModuleType Inserts module type field, with consideration for @table::

Definition at line 307 of file ARTDAQTableBase.cc.

◆ insertParameters()

void ARTDAQTableBase::insertParameters	(	std::ostream &	out,
		std::string &	tabStr,
		std::string &	commentStr,
		ConfigurationTree	parameterGroupLink,
		const std::string &	parameterPreamble,
		bool	onlyInsertAtTableParameters = `false`,
		bool	includeAtTableParameters = `false`
	)

static

insertParameters Inserts parameters in FHiCL outputs stream.

onlyInsertAtTableParameters allows @table:: parameters only,

so that calling code can do two passes (i.e. top of fcl block, @table:: only, and bottom of fcl block, ignore/skip @table:: as default behavior).

Definition at line 235 of file ARTDAQTableBase.cc.

◆ outputDataReceiverFHICL()

void ARTDAQTableBase::outputDataReceiverFHICL	(	const ConfigurationTree &	receiverNode,
		ARTDAQAppType	appType,
		size_t	maxFragmentSizeBytes = `DEFAULT_MAX_FRAGMENT_SIZE`,
		size_t	routingTimeoutMs = `DEFAULT_ROUTING_TIMEOUT_MS`,
		size_t	routingRetryCount = `DEFAULT_ROUTING_RETRY_COUNT`,
		std::string *	returnFcl = `nullptr`
	)

static

outputDataReceiverFHICL Note: currently selfRank and selfPort are unused by artdaq fcl. Could use returnFcl to compare if two nodes have the same fcl.

Definition at line 724 of file ARTDAQTableBase.cc.

◆ outputOnlineMonitorFHICL()

void ARTDAQTableBase::outputOnlineMonitorFHICL ( const ConfigurationTree & monitorNode )

static

outputOnlineMonitorFHICL Note: currently selfRank and selfPort are unused by artdaq fcl

Definition at line 929 of file ARTDAQTableBase.cc.

◆ setAndActivateARTDAQSystem()

void ARTDAQTableBase::setAndActivateARTDAQSystem	(	ConfigurationManagerRW *	cfgMgr,
		const std::map< std::string, std::map< std::string, std::vector< std::string >>> &	nodeTypeToObjectMap,
		const std::map< std::string, std::string > &	subsystemObjectMap
	)

static

setAndActivateARTDAQSystem

static function to modify the active configuration based on

node object and subsystem object.

Subsystem map to destination subsystem name. Node properties: {originalName,status,hostname,subsystemName,(nodeArrString),(hostnameArrString),(hostnameFixedWidth)}

needArtdaqSupervisorParents

Definition at line 3678 of file ARTDAQTableBase.cc.

The documentation for this class was generated from the following files:

otsdaq/otsdaq/TablePlugins/ARTDAQTableBase/ARTDAQTableBase.h
otsdaq/otsdaq/TablePlugins/ARTDAQTableBase/ARTDAQTableBase.cc

Classes

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ARTDAQTableBase() [1/2]

◆ ARTDAQTableBase() [2/2]

Member Function Documentation

◆ getARTDAQSystem()

◆ insertArtProcessBlock()

◆ insertModuleType()

◆ insertParameters()

◆ outputDataReceiverFHICL()

◆ outputOnlineMonitorFHICL()

◆ setAndActivateARTDAQSystem()
