otsdaq  3.11.00
Public Member Functions | Protected Attributes | List of all members
ots::DQMHistosConsumerBase Class Reference

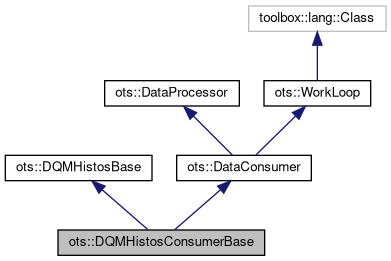

+ Inheritance diagram for ots::DQMHistosConsumerBase:

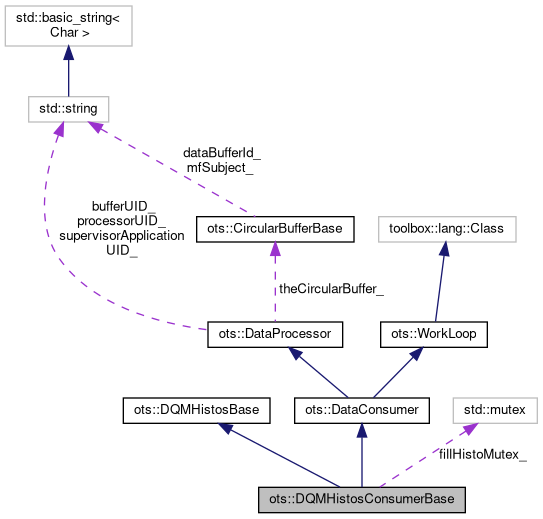

+ Collaboration diagram for ots::DQMHistosConsumerBase:

Public Member Functions

 DQMHistosConsumerBase (std::string supervisorApplicationUID, std::string bufferUID, std::string processorUID, ConsumerPriority)

std::mutex & getFillHistoMutex (void)

- Public Member Functions inherited from ots::DQMHistosBase
virtual void book (void)

virtual void fill (std::string &, std::map< std::string, std::string >)

virtual void load (std::string)

void setDataManager (VisualDataManager *dataManager)

TObject * get (std::string name)

TFile * getFile (void)

- Public Member Functions inherited from ots::DataConsumer
 DataConsumer (std::string supervisorApplicationUID, std::string bufferUID, std::string processorUID, ConsumerPriority priority)

virtual void registerToBuffer (void)
 mirror DataProducerBase::registerToBuffer

virtual void configure (void)

virtual void startProcessingData (std::string runNumber)

virtual void stopProcessingData (void)

template<class D , class H >
int read (D &buffer, H &header)
 Copies the buffer into the passed parameters.

template<class D , class H >
int read (D *&buffer, H *&header)
 Fast version where you point to the buffer without copying.

template<class D , class H >
int setReadSubBuffer (void)

template<class D , class H >
int read (D &buffer)

ConsumerPriority getPriority (void)

- Public Member Functions inherited from ots::DataProcessor
 DataProcessor (std::string supervisorApplicationUID, std::string bufferUID, std::string processorUID)

virtual void pauseProcessingData (void)

virtual void resumeProcessingData (void)

const std::string & getProcessorID (void) const
 Getters.

void setCircularBuffer (CircularBufferBase *circularBuffer)

uint64_t getStatPackets (void) const

uint64_t getStatBytes (void) const

uint64_t getStatErrors (void) const

uint64_t getStatBusyNanos (void) const

virtual std::map< std::string, std::string > getExtraStatus (void) const
 Plugin-specific status items (e.g. socket backlog) as name/value strings.

- Public Member Functions inherited from ots::WorkLoop
 WorkLoop (const std::string &name)

void startWorkLoop (void)

bool stopWorkLoop (void)

bool isActive (void) const


Protected Attributes

std::mutex fillHistoMutex_

- Protected Attributes inherited from ots::DQMHistosBase
TFile * theFile_ = nullptr

TDirectory * myDirectory_ = nullptr

bool autoSave_ = true

bool autoSaveInterval_ = 300

time_t beginTime_ = 0

- Protected Attributes inherited from ots::DataProcessor
const std::string supervisorApplicationUID_

const std::string bufferUID_

const std::string processorUID_

CircularBufferBase * theCircularBuffer_

- Protected Attributes inherited from ots::WorkLoop
volatile bool continueWorkLoop_


Additional Inherited Members

- Public Types inherited from ots::DataConsumer
enum  ConsumerPriority { LowConsumerPriority , HighConsumerPriority }

- Protected Member Functions inherited from ots::DQMHistosBase
void setAutoSave (bool autoSave)
 Default is true.

bool isFileOpen (void)

virtual void save (void)

virtual void openFile (std::string fileName)

virtual void closeFile (void)

virtual void autoSave (bool force=false)
 The file will be saved if force == true or currentTime - beginTimeTime_ is >= autoSaveInterval_.

virtual void setAutoSaveInterval (unsigned int interval)

- Protected Member Functions inherited from ots::DataProcessor
void countPacket (uint64_t bytes)

void countError (void)

void countBusyNanos (uint64_t nanos)

- Protected Member Functions inherited from ots::WorkLoop
virtual bool workLoopThread (toolbox::task::WorkLoop *workLoop)=0

const std::string & getWorkLoopName (void) const
 Getters.


Detailed Description

Definition at line 11 of file DQMHistosConsumerBase.h.

The documentation for this class was generated from the following file:
