ots::SlowControlsTableBase Class Referenceabstract
<virtual so future plugins can inherit from multiple table base classes More...
#include <otsdaq/TablePlugins/SlowControlsTableBase/SlowControlsTableBase.h>

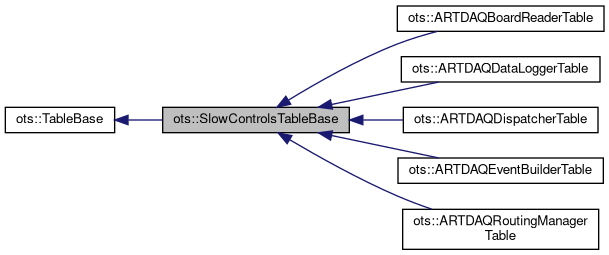

Inheritance diagram for ots::SlowControlsTableBase:

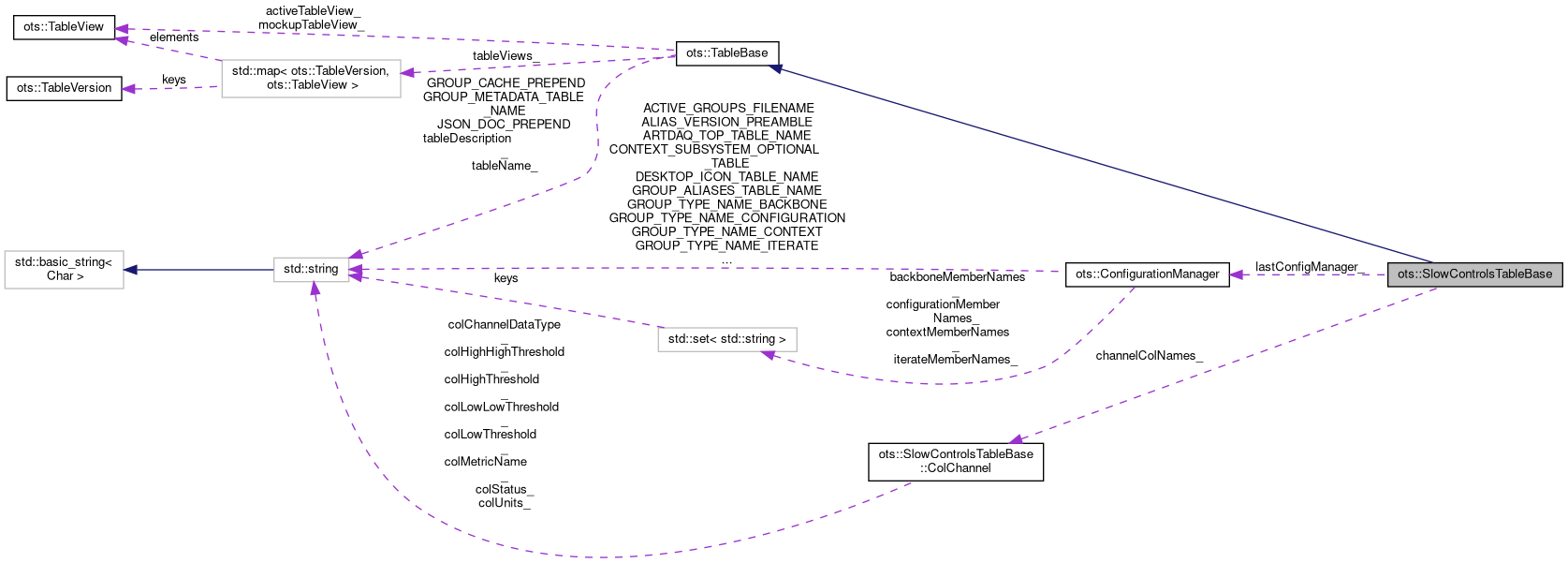

Collaboration diagram for ots::SlowControlsTableBase:
Classes | |
| struct | ColChannel |
| Column names. More... | |
Public Member Functions | |
| SlowControlsTableBase (void) | |
| SlowControlsTableBase (std::string tableName, std::string *accumulatedExceptions=0) | |
| virtual bool | slowControlsChannelListHasChanged (void) const |
| Getters. | |
| virtual void | getSlowControlsChannelList (std::vector< std::pair< std::string, std::vector< std::string >>> &channelList) const |
| virtual bool | outputEpicsPVFile (ConfigurationManager *configManager, std::vector< std::pair< std::string, std::vector< std::string >>> *channelList=0) const |
| use table name to have different file names! (instead of DEFINES like in DTC) More... | |
| virtual unsigned int | slowControlsHandlerConfig (std::stringstream &out, ConfigurationManager *configManager, std::vector< std::pair< std::string, std::vector< std::string >>> *channelList) const =0 |
| virtual unsigned int | slowControlsHandler (std::stringstream &out, std::string &tabStr, std::string &commentStr, std::string &subsystem, std::string &location, ConfigurationTree slowControlsLink, std::vector< std::pair< std::string, std::vector< std::string >>> *channelList) const |
| virtual std::string | setFilePath () const =0 |
| Public Member Functions inherited from ots::TableBase | |
| TableBase (bool specialTable, const std::string &specialTableName) | |
| TableBase (const std::string &tableName, std::string *accumulatedExceptions=0) | |
| virtual | ~TableBase (void) |
| void | specialMetaTableConstructor (void) |
| Methods. More... | |
| virtual void | init (ConfigurationManager *configManager) |
| void | destroy (void) |
| void | reset (bool keepTemporaryVersions=false) |
| void | deactivate (void) |
| bool | isActive (void) |
| isActive | |
| void | print (std::ostream &out=std::cout) const |
| always prints active view | |
| std::string | getTypeId (void) |
| void | setupMockupView (TableVersion version) |
| void | changeVersionAndActivateView (TableVersion temporaryVersion, TableVersion version) |
| bool | isStored (const TableVersion &version) const |
| bool | eraseView (TableVersion version) |
| void | trimCache (unsigned int trimSize=-1) |
| void | trimTemporary (TableVersion targetVersion=TableVersion()) |
| TableVersion | checkForDuplicate (TableVersion needleVersion, TableVersion ignoreVersion=TableVersion()) const |
| bool | diffTwoVersions (TableVersion v1, TableVersion v2, std::stringstream *diffReport=0, std::map< std::string, std::vector< std::string >> *v1ModifiedRecords=0) const |
| const std::string & | getTableName (void) const |
| Getters. | |
| const std::string & | getTableDescription (void) const |
| std::set< TableVersion > | getStoredVersions (void) const |
| const TableView & | getView (TableVersion version=TableVersion(TableVersion::INVALID)) const |
| TableView * | getViewP (TableVersion version=TableVersion(TableVersion::INVALID)) |
| TableView * | getMockupViewP (void) |
| const TableVersion & | getViewVersion (void) const |
| always the active one | |
| TableView * | getTemporaryView (TableVersion temporaryVersion) |
| TableVersion | getNextTemporaryVersion (void) const |
| TableVersion | getNextVersion (void) const |
| virtual std::string | getStructureStatusAsJSON (ConfigurationManager *configManager) const |
| void | setTableName (const std::string &tableName) |
| Setters. | |
| void | setTableDescription (const std::string &tableDescription) |
| bool | setActiveView (TableVersion version) |
| TableVersion | copyView (const TableView &sourceView, TableVersion destinationVersion, const std::string &author, bool looseColumnMatching=false) |
| TableVersion | mergeViews (const TableView &sourceViewA, const TableView &sourceViewB, TableVersion destinationVersion, const std::string &author, const std::string &mergeApproach, std::map< std::pair< std::string, std::string >, std::string > &uidConversionMap, std::map< std::pair< std::string, std::pair< std::string, std::string > >, std::string > &groupidConversionMap, bool fillRecordConversionMaps, bool applyRecordConversionMaps, bool generateUniqueDataColumns=false, std::stringstream *mergeRepoert=nullptr) |
| TableVersion | createTemporaryView (TableVersion sourceViewVersion=TableVersion(), TableVersion destTemporaryViewVersion=TableVersion::getNextTemporaryVersion()) |
| source of -1, from MockUp, else from valid view version More... | |
| bool | latestAndMockupColumnNumberMismatch (void) const |
| unsigned int | getNumberOfStoredViews (void) const |
Public Attributes | |
| struct ots::SlowControlsTableBase::ColChannel | channelColNames_ |
| bool | isFirstAppInContext_ = false |
| for managing if PV list has changed | |
| bool | channelListHasChanged_ = false |
| for managing if PV list has changed | |
| ConfigurationManager * | lastConfigManager_ = nullptr |
| Public Attributes inherited from ots::TableBase | |
| const unsigned int | MAX_VIEWS_IN_CACHE |
Additional Inherited Members | |
| Static Public Member Functions inherited from ots::TableBase | |
| static std::string | convertToCaps (std::string &str, bool isConfigName=false) |
| Static Public Attributes inherited from ots::TableBase | |
| static const std::string | GROUP_CACHE_PREPEND = "GroupCache_" |
| static const std::string | JSON_DOC_PREPEND = "JSONDoc_" |
| static const std::string | GROUP_METADATA_TABLE_NAME = "TableGroupMetadata" |
| Protected Attributes inherited from ots::TableBase | |
| std::string | tableName_ |
| std::string | tableDescription_ |
| TableView * | activeTableView_ |
| TableView | mockupTableView_ |
| std::map< TableVersion, TableView > | tableViews_ |
Detailed Description
<virtual so future plugins can inherit from multiple table base classes
Definition at line 17 of file SlowControlsTableBase.h.
Constructor & Destructor Documentation
◆ SlowControlsTableBase() [1/2]
| SlowControlsTableBase::SlowControlsTableBase | ( | void | ) |
SlowControlsTableBase Default constructor should never be used because table type is lost
Definition at line 39 of file SlowControlsTableBase.cc.
◆ SlowControlsTableBase() [2/2]
| SlowControlsTableBase::SlowControlsTableBase | ( | std::string | tableName, |
| std::string * | accumulatedExceptions = 0 |
||
| ) |
TableBase If a valid string pointer is passed in accumulatedExceptions then allowIllegalColumns is set for InfoReader If accumulatedExceptions pointer = 0, then illegal columns throw std::runtime_error exception
Definition at line 17 of file SlowControlsTableBase.cc.
Member Function Documentation
◆ outputEpicsPVFile()
|
virtual |
use table name to have different file names! (instead of DEFINES like in DTC)
return channel list if pointer passed
boardReader{ build vector .. based on table 1,2,3,4,5.. pass vector outputPV() } DTC { build vector from config Tree pass vector to outputPV() } is channel binary or not?.. then can handle all the same
Definition at line 261 of file SlowControlsTableBase.cc.
The documentation for this class was generated from the following files:
- otsdaq/otsdaq/TablePlugins/SlowControlsTableBase/SlowControlsTableBase.h
- otsdaq/otsdaq/TablePlugins/SlowControlsTableBase/SlowControlsTableBase.cc
