#include <otsdaq/NetworkUtilities/TCPListenServer.h>
Inheritance diagram for ots::TCPListenServer:

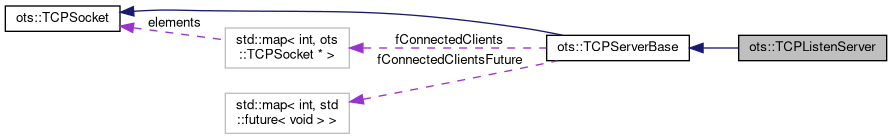

Collaboration diagram for ots::TCPListenServer:
Public Member Functions | |
| TCPListenServer (unsigned int serverPort, unsigned int maxNumberOfClients=-1) | |
| template<class T > | |
| T | receive () |
| std::string | receivePacket () |
| Length-prefixed packet from a ready client. Same timeout/throw semantics. | |
| Public Member Functions inherited from ots::TCPServerBase | |
| TCPServerBase (unsigned int serverPort, unsigned int maxNumberOfClients=0) | |
| Means as many unsigned allows. | |
| void | startAccept (void) |
| void | shutdownAccept (void) |
| void | broadcastPacket (const char *message, std::size_t length) |
| void | broadcastPacket (const std::string &message) |
| void | broadcast (const char *message, std::size_t length) |
| void | broadcast (const std::string &message) |
| void | broadcast (const std::vector< char > &message) |
| void | broadcast (const std::vector< uint16_t > &message) |
| Public Member Functions inherited from ots::TCPSocket | |
| TCPSocket (int socketId=invalidSocketId) | |
| Designed to be a base class not used used directly. | |
| TCPSocket (TCPSocket &&move) | |
| Moveable but not Copyable. | |
| TCPSocket & | operator= (TCPSocket &&move) |
| void | swap (TCPSocket &other) |
| TCPSocket (TCPSocket const &)=delete | |
| Explicitly deleting copy constructor. | |
| TCPSocket & | operator= (TCPSocket const &)=delete |
| int | getSocketId (void) const |
| void | open (void) |
| void | close (void) |
| void | sendClose (void) |
Protected Member Functions | |
| void | acceptConnections () override |
| TCPReceiverSocket * | waitForReadableClient (std::chrono::milliseconds timeout) |
| Protected Member Functions inherited from ots::TCPServerBase | |
| void | closeClientSocket (int socket) |
| template<class T > | |
| T * | acceptClient (bool blocking=true) |
| void | removeClient (int socketId) |
| Drop a client whose peer has gone away (no shutdown handshake, just close). | |
| std::vector< int > | getClientSocketIds (void) const |
| Snapshot of connected client socket ids, safe to call from any thread. | |
| void | pingActiveClients (void) |
| bool | getAccept () |
Protected Attributes | |
| int | lastReceived = -1 |
| Protected Attributes inherited from ots::TCPServerBase | |
| std::mutex | fClientsMutex |
| std::map< int, TCPSocket * > | fConnectedClients |
| std::map< int, std::future< void > > | fConnectedClientsFuture |
| const int | E_SHUTDOWN = 0 |
Static Protected Attributes | |
| static constexpr std::chrono::milliseconds | kPollTimeout {5} |
| Static Protected Attributes inherited from ots::TCPSocket | |
| static constexpr int | invalidSocketId = -1 |
Detailed Description
TCPListenServer Accepts any number of clients and lets one reader thread pull data from whichever client has something to say. Reads never block on an idle client: the reader polls all clients, picks a ready one round-robin, and reads from it. A client whose peer closed the connection is dropped from the list on the spot.
Definition at line 18 of file TCPListenServer.h.
Member Function Documentation
◆ receive()
|
inline |
Raw read from a ready client. Returns an empty T if no client had data within the poll timeout. Throws if the chosen client's connection closed (after removing it).
Definition at line 47 of file TCPListenServer.h.
◆ waitForReadableClient()
|
protected |
Wait up to timeout for any client to become readable and return it, rotating through clients so a chatty one cannot starve the others. nullptr on timeout or when no clients are connected (the timeout is still honoured, so callers do not spin).
Definition at line 27 of file TCPListenServer.cc.
The documentation for this class was generated from the following files:
- otsdaq/otsdaq/NetworkUtilities/TCPListenServer.h
- otsdaq/otsdaq/NetworkUtilities/TCPListenServer.cc
