Inheritance diagram for ots::TransceiverSocket:

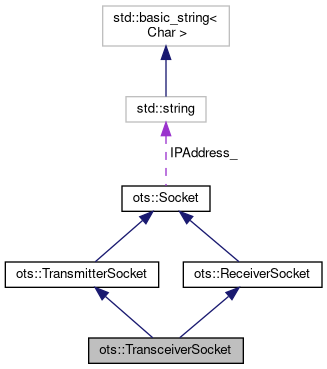

Collaboration diagram for ots::TransceiverSocket:

Public Member Functions
	TransceiverSocket (std::string IPAddress, unsigned int port=0)

int	acknowledge (const std::string &buffer, bool verbose=false, size_t maxChunkSize=1500, unsigned int interPacketGapUSeconds=0, bool enableRetransmission=false)

int	sendAll (const std::string &buffer, bool verbose=false, size_t maxChunkSize=65500, unsigned int interPacketGapUSeconds=0)

int	receiveAll (std::string &buffer, unsigned int timeoutSeconds=5, unsigned int retransmitMaxRetries=10, bool verbose=false)

std::string	sendAndReceive (Socket &toSocket, const std::string &sendBuffer, unsigned int timeoutSeconds=1, unsigned int timeoutUSeconds=0, bool verbose=false, unsigned int interPacketTimeoutUSeconds=10000)

std::string	sendAndReceiveAll (Socket &toSocket, const std::string &sendBuffer, unsigned int timeoutSeconds=5, unsigned int retransmitMaxRetries=10, bool verbose=false)

Public Member Functions inherited from ots::TransmitterSocket
	TransmitterSocket (const std::string &IPAddress, unsigned int port=0)

int	send (Socket &toSocket, const std::string &buffer, bool verbose=false)

int	send (Socket &toSocket, const std::vector< uint32_t > &buffer, bool verbose=false)

int	send (Socket &toSocket, const std::vector< uint16_t > &buffer, bool verbose=false)

Public Member Functions inherited from ots::Socket
	Socket (const std::string &IPAddress, unsigned int port=0)

virtual void	initialize (unsigned int socketReceiveBufferSize=defaultSocketReceiveSize_)

const struct sockaddr_in &	getSocketAddress (void)

const std::string &	getIPAddress ()

uint16_t	getPort ()

bool	isInitialized ()

Public Member Functions inherited from ots::ReceiverSocket
	ReceiverSocket (std::string IPAddress, unsigned int port=0)

int	flush ()

int	receive (std::string &buffer, unsigned int timeoutSeconds=1, unsigned int timeoutUSeconds=0, bool verbose=false)
	returns count of dropped packets

int	receive (std::vector< uint32_t > &buffer, unsigned int timeoutSeconds=1, unsigned int timeoutUSeconds=0, bool verbose=false)

int	receive (std::string &buffer, unsigned long &fromIPAddress, unsigned short &fromPort, unsigned int timeoutSeconds=1, unsigned int timeoutUSeconds=0, bool verbose=false)

int	receive (std::vector< uint32_t > &buffer, unsigned long &fromIPAddress, unsigned short &fromPort, unsigned int timeoutSeconds=1, unsigned int timeoutUSeconds=0, bool verbose=false)

std::string	getLastIncomingIPAddress (void)

unsigned short	getLastIncomingPort (void)

Static Public Attributes
static constexpr uint16_t	RETRANSMIT_MAGIC = 0xD2C4
	Retransmission protocol constants.

static constexpr size_t	RETRANSMIT_HEADER_SIZE = 8

Additional Inherited Members
Protected Types inherited from ots::Socket
enum	{ maxSocketSize_ = 65536 , defaultSocketReceiveSize_ = 0x10000 }

enum	{ FirstSocketPort = 10000 , LastSocketPort = 15000 }

Protected Member Functions inherited from ots::Socket
	Socket (void)
	protected constructor

Protected Member Functions inherited from ots::ReceiverSocket
	ReceiverSocket (void)
	protected constructor

Protected Attributes inherited from ots::Socket
struct sockaddr_in	socketAddress_

int	socketNumber_

std::string	IPAddress_

unsigned int	requestedPort_

bool	isInitialized_ = false

Detailed Description

Definition at line 12 of file TransceiverSocket.h.

Member Function Documentation

◆ acknowledge()

int TransceiverSocket::acknowledge	(	const std::string &	buffer,
		bool	verbose = `false`,
		size_t	maxChunkSize = `1500`,
		unsigned int	interPacketGapUSeconds = `0`,
		bool	enableRetransmission = `false`
	)

acknowledge() responds to last receive location. When enableRetransmission is true, delegates to sendAll() for reliable multi-packet transfer with retransmit handling.

returns 0 on success When enableRetransmission is true, uses sendAll() to send the buffer with retransmission headers, then waits for retransmit requests from the receiver.

Definition at line 39 of file TransceiverSocket.cc.

◆ receiveAll()

int TransceiverSocket::receiveAll	(	std::string &	buffer,
		unsigned int	timeoutSeconds = `5`,
		unsigned int	retransmitMaxRetries = `10`,
		bool	verbose = `false`
	)

receiveAll() receives a multi-packet retransmission-mode response. It assembles the full message from individually-headered packets, detects missing packets by index, and requests retransmission from the sender for any dropped packets. Returns 0 on success (assembled buffer placed in 'buffer'), -1 on failure.

receiveAll() receives a multi-packet retransmission-mode response. Packets are expected to have an 8-byte retransmission header: [0-1] magic 0xD2C4 (network byte order) [2-3] packet index (network byte order uint16) [4-5] total packets (network byte order uint16) [6-7] payload size (network byte order uint16)

After all initial packets are received (or timeout), missing packets are identified and a retransmit request is sent back to the sender containing the magic marker followed by the list of missing packet indices. This repeats up to retransmitMaxRetries times. When all packets are received, a "done" signal (magic + 0xFFFF) is sent to the sender.

Returns 0 on success (assembled buffer placed in 'buffer'), -1 on failure.

Definition at line 384 of file TransceiverSocket.cc.

◆ sendAll()

int TransceiverSocket::sendAll	(	const std::string &	buffer,
		bool	verbose = `false`,
		size_t	maxChunkSize = `65500`,
		unsigned int	interPacketGapUSeconds = `0`
	)

sendAll() sends a buffer to the last receive address using the retransmission protocol. This is fully self-contained: it builds headered packets, sends them all, then waits for retransmit requests from the receiver and resends any missing packets. Only returns when the transfer is complete (receiver sends "done") or timeout expires.

Each packet is prepended with an 8-byte retransmission header: [0-1] magic marker 0xD2C4 (network byte order) [2-3] packet index (0-based, network byte order uint16) [4-5] total packet count (network byte order uint16) [6-7] payload size in this packet (network byte order uint16)

Returns 0 on success.

sendAll() sends a buffer to the last receive address (fromAddress_) using the retransmission protocol. Fully self-contained:

Builds all packets with 8-byte retransmission headers
Sends all packets
Waits for retransmit requests from the receiver
Resends requested packets
Returns when receiver sends "done" or timeout expires

Returns 0 on success.

Definition at line 111 of file TransceiverSocket.cc.

◆ sendAndReceive()

std::string TransceiverSocket::sendAndReceive	(	Socket &	toSocket,
		const std::string &	sendBuffer,
		unsigned int	timeoutSeconds = `1`,
		unsigned int	timeoutUSeconds = `0`,
		bool	verbose = `false`,
		unsigned int	interPacketTimeoutUSeconds = `10000`
	)

Receives one packet with the specified timeout, then attempts to receive additional packets with interPacketTimeoutUSeconds timeout to handle multi-packet responses. Returns the combined received buffer or throws on error/timeout.

Definition at line 295 of file TransceiverSocket.cc.

◆ sendAndReceiveAll()

std::string TransceiverSocket::sendAndReceiveAll	(	Socket &	toSocket,
		const std::string &	sendBuffer,
		unsigned int	timeoutSeconds = `5`,
		unsigned int	retransmitMaxRetries = `10`,
		bool	verbose = `false`
	)

sendAndReceiveAll() sends a command then uses the retransmission protocol to reliably receive the full multi-packet response. The sender must use acknowledge() with enableRetransmission=true (or sendAll()). This method:

Flushes and sends the request
Receives all retransmission-headered packets
Detects missing packets and sends retransmit requests
Assembles and returns the complete response Throws on timeout or error.

sendAndReceiveAll() sends a command then reliably receives the full multi-packet response using the retransmission protocol. The remote sender must use acknowledge() with enableRetransmission=true.

This mirrors sendAndReceive() but uses receiveAll() instead of the simple multi-packet loop, providing:

Packet ordering via indexed headers
Dropped packet detection via known total count
Automatic retransmit requests for missing packets
Fully assembled, ordered response buffer

Throws on timeout or error.

Definition at line 674 of file TransceiverSocket.cc.

The documentation for this class was generated from the following files:

otsdaq/otsdaq/NetworkUtilities/TransceiverSocket.h
otsdaq/otsdaq/NetworkUtilities/TransceiverSocket.cc
