ots::UDPDataStreamerConsumer Class Reference

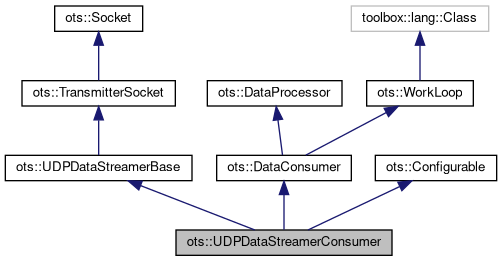

+ Inheritance diagram for ots::UDPDataStreamerConsumer:

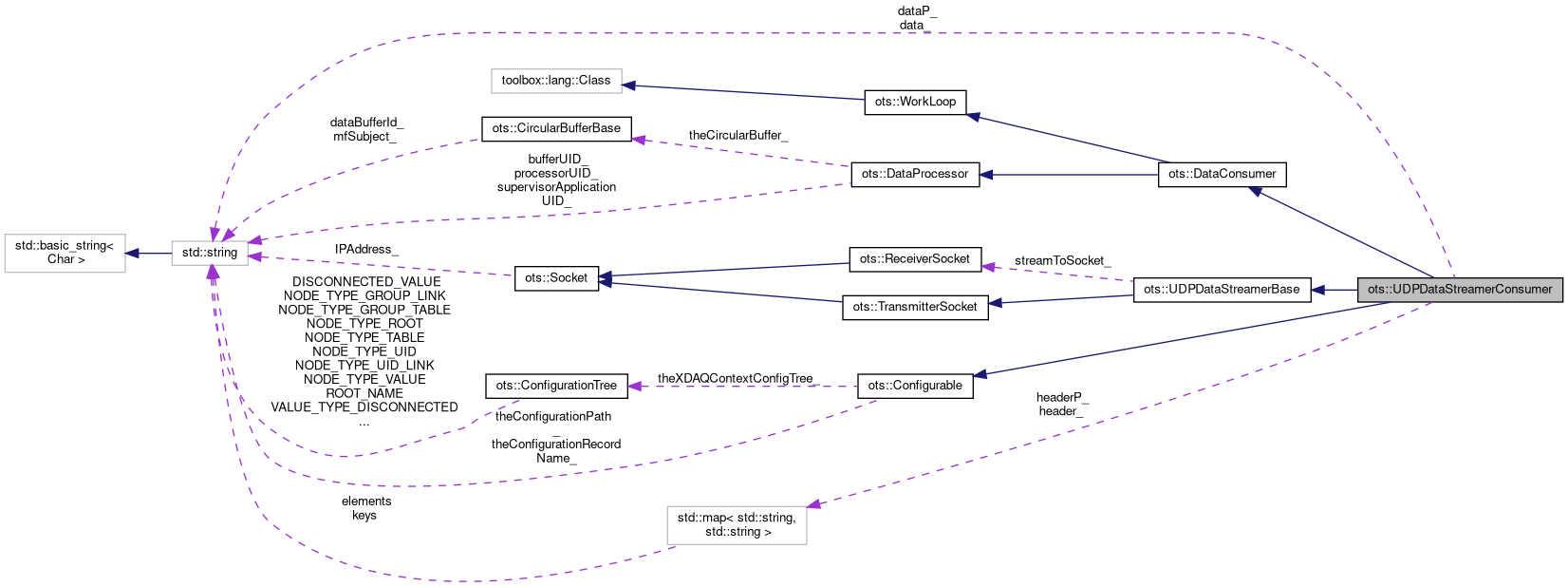

+ Collaboration diagram for ots::UDPDataStreamerConsumer:

Public Member Functions

 UDPDataStreamerConsumer (std::string supervisorApplicationUID, std::string bufferUID, std::string processorUID, const ConfigurationTree &theXDAQContextConfigTree, const std::string &configurationPath)

- Public Member Functions inherited from ots::UDPDataStreamerBase
 UDPDataStreamerBase (std::string IPAddress, unsigned int port, std::string toIPAddress, unsigned int toPort)

int send (const std::string &buffer)

int send (const std::vector< uint32_t > &buffer)

- Public Member Functions inherited from ots::TransmitterSocket
 TransmitterSocket (const std::string &IPAddress, unsigned int port=0)

int send (Socket &toSocket, const std::string &buffer, bool verbose=false)

int send (Socket &toSocket, const std::vector< uint32_t > &buffer, bool verbose=false)

int send (Socket &toSocket, const std::vector< uint16_t > &buffer, bool verbose=false)

- Public Member Functions inherited from ots::Socket
 Socket (const std::string &IPAddress, unsigned int port=0)

virtual void initialize (unsigned int socketReceiveBufferSize=defaultSocketReceiveSize_)

const struct sockaddr_in & getSocketAddress (void)

const std::string & getIPAddress ()

uint16_t getPort ()

bool isInitialized ()

- Public Member Functions inherited from ots::DataConsumer
 DataConsumer (std::string supervisorApplicationUID, std::string bufferUID, std::string processorUID, ConsumerPriority priority)

virtual void registerToBuffer (void)
 mirror DataProducerBase::registerToBuffer

virtual void configure (void)

virtual void startProcessingData (std::string runNumber)

virtual void stopProcessingData (void)

template<class D , class H >
int read (D &buffer, H &header)
 Copies the buffer into the passed parameters.

template<class D , class H >
int read (D *&buffer, H *&header)
 Fast version where you point to the buffer without copying.

template<class D , class H >
int setReadSubBuffer (void)

template<class D , class H >
int read (D &buffer)

ConsumerPriority getPriority (void)

- Public Member Functions inherited from ots::DataProcessor
 DataProcessor (std::string supervisorApplicationUID, std::string bufferUID, std::string processorUID)

virtual void pauseProcessingData (void)

virtual void resumeProcessingData (void)

const std::string & getProcessorID (void) const
 Getters.

void setCircularBuffer (CircularBufferBase *circularBuffer)

uint64_t getStatPackets (void) const

uint64_t getStatBytes (void) const

uint64_t getStatErrors (void) const

uint64_t getStatBusyNanos (void) const

virtual std::map< std::string, std::string > getExtraStatus (void) const
 Plugin-specific status items (e.g. socket backlog) as name/value strings.

- Public Member Functions inherited from ots::WorkLoop
 WorkLoop (const std::string &name)

void startWorkLoop (void)

bool stopWorkLoop (void)

bool isActive (void) const

- Public Member Functions inherited from ots::Configurable
 Configurable (const ConfigurationTree &theXDAQContextConfigTree, const std::string &theConfigurationPath)

ConfigurationTree getSelfNode () const

const ConfigurationManager * getConfigurationManager () const

const std::string & getContextUID () const

const std::string & getApplicationUID () const

unsigned int getApplicationLID () const

std::string getContextAddress () const

unsigned int getContextPort () const


Protected Member Functions

bool workLoopThread (toolbox::task::WorkLoop *workLoop)

void fastRead (void)

void slowRead (void)

- Protected Member Functions inherited from ots::Socket
 Socket (void)
 protected constructor

- Protected Member Functions inherited from ots::DataProcessor
void countPacket (uint64_t bytes)

void countError (void)

void countBusyNanos (uint64_t nanos)

- Protected Member Functions inherited from ots::WorkLoop
const std::string & getWorkLoopName (void) const
 Getters.


Protected Attributes

std::string * dataP_
 For fast read.

std::map< std::string, std::string > * headerP_

std::string data_
 For slow read.

std::map< std::string, std::string > header_

- Protected Attributes inherited from ots::UDPDataStreamerBase
ReceiverSocket streamToSocket_

- Protected Attributes inherited from ots::Socket
struct sockaddr_in socketAddress_

int socketNumber_

std::string IPAddress_

unsigned int requestedPort_

bool isInitialized_ = false

- Protected Attributes inherited from ots::DataProcessor
const std::string supervisorApplicationUID_

const std::string bufferUID_

const std::string processorUID_

CircularBufferBase * theCircularBuffer_

- Protected Attributes inherited from ots::WorkLoop
volatile bool continueWorkLoop_

- Protected Attributes inherited from ots::Configurable
const ConfigurationTree theXDAQContextConfigTree_

const std::string theConfigurationPath_

const std::string theConfigurationRecordName_


Additional Inherited Members

- Public Types inherited from ots::DataConsumer
enum  ConsumerPriority { LowConsumerPriority , HighConsumerPriority }

- Protected Types inherited from ots::Socket
enum  { maxSocketSize_ = 65536 , defaultSocketReceiveSize_ = 0x10000 }

enum  { FirstSocketPort = 10000 , LastSocketPort = 15000 }


Detailed Description

Definition at line 14 of file UDPDataStreamerConsumer.h.

Constructor & Destructor Documentation

◆ UDPDataStreamerConsumer()

UDPDataStreamerConsumer::UDPDataStreamerConsumer ( std::string  supervisorApplicationUID,
std::string  bufferUID,
std::string  processorUID,
const ConfigurationTree &  theXDAQContextConfigTree,
const std::string &  configurationPath
)

, Socket ("192.168.133.1", 47200) , DataConsumer ("ARTDAQDataManager", 1, "ARTDAQBuffer", "ARTDAQDataStreamer0", HighConsumerPriority) , streamToSocket_("192.168.133.1", 50100)

Definition at line 13 of file UDPDataStreamerConsumer_processor.cc.

The documentation for this class was generated from the following files:
