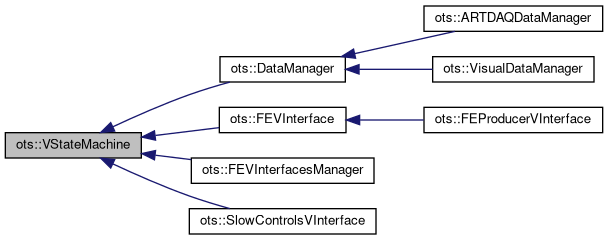

Inheritance diagram for ots::VStateMachine:

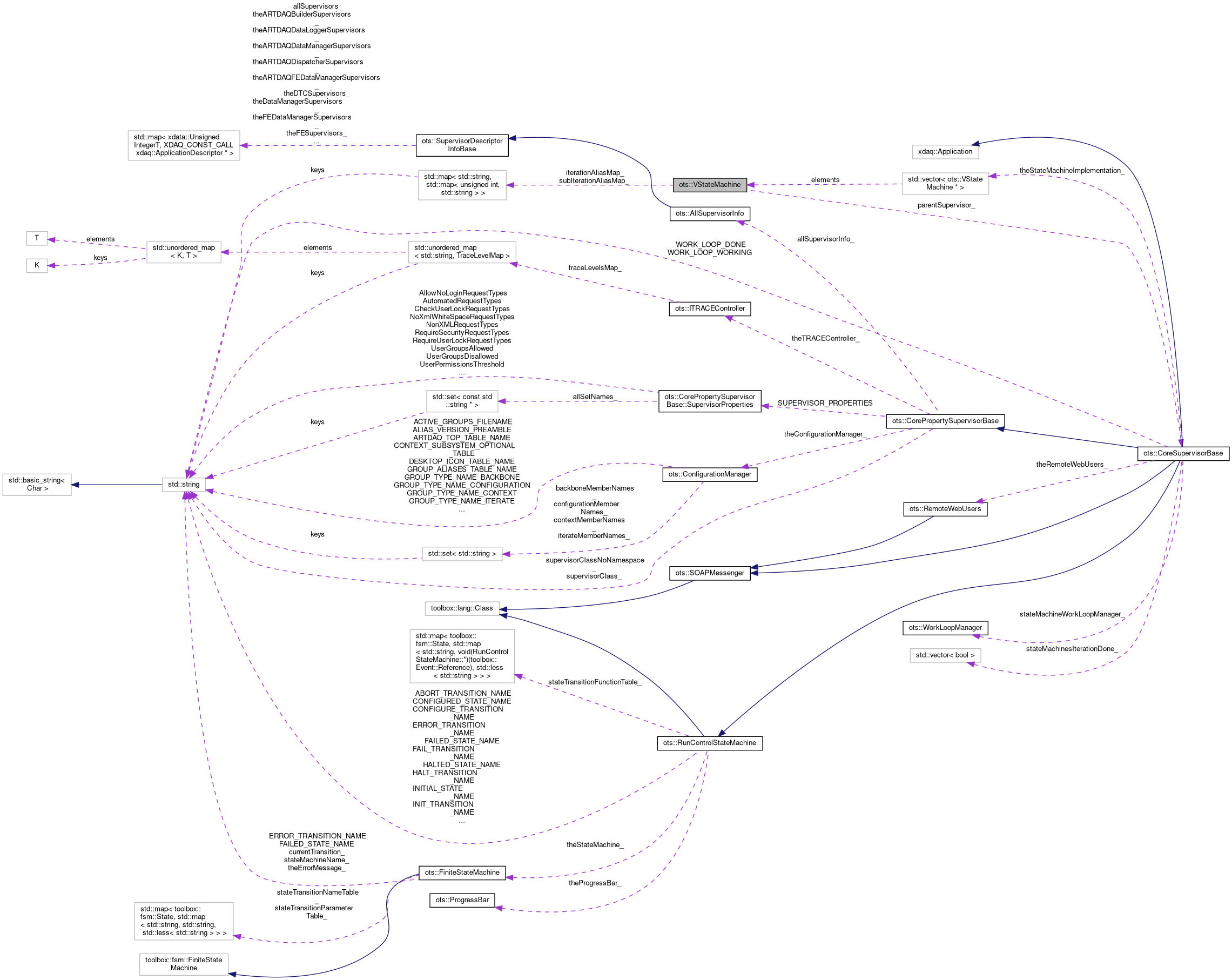

Collaboration diagram for ots::VStateMachine:

Public Member Functions
	VStateMachine (const std::string &name)

virtual void	configure (void)=0
	Transitions.

virtual void	halt (void)=0

virtual void	pause (void)=0

virtual void	resume (void)=0

virtual void	start (std::string runNumber)=0

virtual void	stop (void)=0

virtual bool	running (void)
	States.

virtual void	paused (void)

virtual void	halted (void)

virtual void	configured (void)

virtual void	initial (void)

virtual void	inError (void)

virtual std::string	getStatusProgressDetail (void)
	Status. More...

virtual unsigned int	getMinReadyForEventGenerationStartIteration (void) const

void	setTransitionName (const std::string &transitionName)

const std::string &	getTransitionName (void)

void	setSubsystemIterationIndex (unsigned int i)

unsigned int	getSubsystemIterationIndex (void) const

bool	isStandaloneSubsystem (void) const

bool	isFirstIteration (void) const
	true on the very first call of a transition (all indices at their starting value)

std::string	getSubsystemIterationIndexString (void) const

unsigned int	getSubsystemSyncStepIndex (void) const

void	indicateSubsystemSyncStepWork (void)

void	indicateSubsystemIterationWork (void)

void	clearSubsystemIterationWork (void)

bool	getSubsystemIterationWork (void)

void	setIterationIndex (unsigned int i)

void	setSubIterationIndex (unsigned int i)

unsigned int	getIterationIndex (void)

unsigned int	getSubIterationIndex (void)

void	setSystemMinReadyForEventGenerationStartIteration (unsigned int i)

unsigned int	getSystemMinReadyForEventGenerationStartIteration (void) const

void	indicateIterationWork (void)

void	clearIterationWork (void)

bool	getIterationWork (void)

void	indicateSubIterationWork (void)

void	clearSubIterationWork (void)

bool	getSubIterationWork (void)

Public Attributes
CoreSupervisorBase *	parentSupervisor_ = nullptr

Static Public Attributes
static const unsigned int	SUBSYSTEM_ITERATION_STANDALONE = (unsigned int)-1

Protected Attributes
std::map< std::string, std::map< unsigned int, std::string > >	subsystemIterationAliasMap_

std::map< std::string, std::map< unsigned int, std::string > >	iterationAliasMap_

std::map< std::string, std::map< unsigned int, std::string > >	subIterationAliasMap_

Detailed Description

Definition at line 10 of file VStateMachine.h.

Member Function Documentation

◆ getStatusProgressDetail()

virtual std::string ots::VStateMachine::getStatusProgressDetail ( void )

inlinevirtual

Status.

virtual progress detail string that can be overridden with more info e.g. step and sub-step aliases, etc

< just index

Reimplemented in ots::FEVInterfacesManager.

Definition at line 51 of file VStateMachine.h.

◆ getSubsystemSyncStepIndex()

unsigned int ots::VStateMachine::getSubsystemSyncStepIndex ( void ) const

inline

For steps that must be ordered across subsystems (e.g. start sequence): the subsystem-iteration index under a top-level, or the plain iteration index when standalone (the STANDALONE index never increments, while plain iterations are already synchronized within the one subsystem).

Definition at line 177 of file VStateMachine.h.

Member Data Documentation

◆ parentSupervisor_

CoreSupervisorBase* ots::VStateMachine::parentSupervisor_ = nullptr

e.g. to communicate error fault and start transition to error for entire system

Definition at line 208 of file VStateMachine.h.

◆ SUBSYSTEM_ITERATION_STANDALONE

const unsigned int ots::VStateMachine::SUBSYSTEM_ITERATION_STANDALONE = (unsigned int)-1

static

Subsystem-iteration index sent by a Gateway that has no top-level above it and no remote subsystems below it. Plugins treat it as "every subsystem-iteration is mine", so nobody idles a pass waiting for another subsystem that does not exist.

Definition at line 16 of file VStateMachine.h.

The documentation for this class was generated from the following file:

otsdaq/otsdaq/FiniteStateMachine/VStateMachine.h
