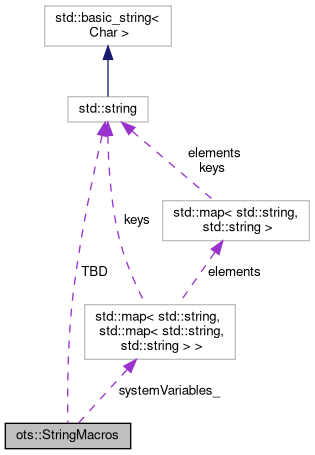

Collaboration diagram for ots::StringMacros:

Classes
struct	IgnoreCaseCompareStruct

Static Public Member Functions
static bool	wildCardMatch (const std::string &needle, const std::string &haystack, unsigned int *priorityIndex=0)

static bool	inWildCardSet (const std::string &needle, const std::set< std::string > &haystack)

template<class T >
static T &	getWildCardMatchFromMap (const std::string &needle, std::map< std::string, T > &haystack, std::string *foundKey=0)
	defined in included .icc source More...

static std::string	decodeURIComponent (const std::string &data)

static std::string	encodeURIComponent (const std::string &data)

static void	sanitizeForSQL (std::string &data)
	StringMacros::sanitizeForSQL.

static std::string	escapeString (std::string inString, bool allowWhiteSpace=false, bool forHtml=false)

static std::string	escapeJSONStringEntities (const std::string &str)

static std::string	restoreJSONStringEntities (const std::string &str)

static const std::string &	trim (std::string &s)

static std::string	convertEnvironmentVariables (const std::string &data)

static unsigned int	getConcurrencyCount (void)

static bool	isNumber (const std::string &stringToCheck)
	Note: before call consider use of stringToCheck = StringMacros::convertEnvironmentVariables(stringToCheck) More...

static std::string	getNumberType (const std::string &stringToCheck)
	Note: before call consider use of stringToCheck = StringMacros::convertEnvironmentVariables(stringToCheck) More...

template<class T >
static bool	getNumber (const std::string &s, T &retValue)

static bool	getNumber (const std::string &s, bool &retValue)
	template<> More...

static std::string	getTimestampString (const std::string &linuxTimeInSeconds)

static std::string	getTimestampString (const time_t linuxTimeInSeconds=time(0))

static std::string	getTimeDurationString (const time_t durationInSeconds=time(0))

template<class T >
static T	validateValueForDefaultStringDataType (const std::string &value, bool doConvertEnvironmentVariables=true)

static std::string	validateValueForDefaultStringDataType (const std::string &value, bool doConvertEnvironmentVariables=true)

static void	getSetFromString (const std::string &inputString, std::set< std::string > &setToReturn, const std::set< char > &delimiter={',', '\|', '&'}, const std::set< char > &whitespace={' ', '\t', '\n', '\r'})

template<class T , class S = std::string>
static void	getMapFromString (const std::string &inputString, std::map< S, T > &mapToReturn, const std::set< char > &pairPairDelimiter={',', '\|', '&'}, const std::set< char > &nameValueDelimiter={'=', ':'}, const std::set< char > &whitespace={' ', '\t', '\n', '\r'})
	getMapFromString ~ More...

static void	getMapFromString (const std::string &inputString, std::map< std::string, std::string > &mapToReturn, const std::set< char > &pairPairDelimiter={',', '\|', '&'}, const std::set< char > &nameValueDelimiter={'=', ':'}, const std::set< char > &whitespace={' ', '\t', '\n', '\r'})

static void	getVectorFromString (const std::string &inputString, std::vector< std::string > &listToReturn, const std::set< char > &delimiter={',', '\|', '&'}, const std::set< char > &whitespace={' ', '\t', '\n', '\r'}, std::vector< char > *listOfDelimiters=0, bool decodeURIComponents=false)

static std::vector< std::string >	getVectorFromString (const std::string &inputString, const std::set< char > &delimiter={',', '\|', '&'}, const std::set< char > &whitespace={' ', '\t', '\n', '\r'}, std::vector< char > *listOfDelimiters=0, bool decodeURIComponents=false)

template<class T >
static std::string	mapToString (const std::map< std::string, T > &mapToReturn, const std::string &primaryDelimeter=", ", const std::string &secondaryDelimeter=": ")

template<class S , class T >
static std::string	mapToString (const std::map< S, T > &mapToReturn, const std::string &primaryDelimeter=", ", const std::string &secondaryDelimeter=": ")

template<class T >
static std::string	mapToString (const std::map< std::pair< std::string, std::string >, T > &mapToReturn, const std::string &primaryDelimeter=", ", const std::string &secondaryDelimeter=": ")

template<class T >
static std::string	mapToString (const std::map< std::pair< std::string, std::pair< std::string, std::string >>, T > &mapToReturn, const std::string &primaryDelimeter=", ", const std::string &secondaryDelimeter=": ")

template<class T >
static std::string	mapToString (const std::map< std::string, std::pair< std::string, T >> &mapToReturn, const std::string &primaryDelimeter=", ", const std::string &secondaryDelimeter=": ")

template<class T >
static std::string	mapToString (const std::map< std::string, std::map< std::string, T >> &mapToReturn, const std::string &primaryDelimeter=", ", const std::string &secondaryDelimeter=": ")

template<class T >
static std::string	mapToString (const std::map< std::string, std::set< T >> &mapToReturn, const std::string &primaryDelimeter=", ", const std::string &secondaryDelimeter=": ")

template<class T >
static std::string	mapToString (const std::map< std::string, std::vector< T >> &mapToReturn, const std::string &primaryDelimeter=", ", const std::string &secondaryDelimeter=": ")

static std::string	mapToString (const std::map< std::string, uint8_t > &mapToReturn, const std::string &primaryDelimeter=", ", const std::string &secondaryDelimeter=": ")
	mapToString

template<class T >
static std::string	setToString (const std::set< T > &setToReturn, const std::string &delimeter=", ")
	setToString ~ More...

static std::string	setToString (const std::set< uint8_t > &setToReturn, const std::string &delimeter=", ")
	setToString

template<class S , class T >
static std::string	setToString (const std::set< std::pair< S, T >> &setToReturn, const std::string &primaryDelimeter=", ", const std::string &secondaryDelimeter=":")

template<class T >
static std::string	vectorToString (const std::vector< T > &setToReturn, const std::string &delimeter=", ")
	vectorToString ~ More...

static std::string	vectorToString (const std::vector< uint8_t > &setToReturn, const std::string &delimeter=", ")
	vectorToString

template<class S , class T >
static std::string	vectorToString (const std::vector< std::pair< S, T >> &setToReturn, const std::string &primaryDelimeter="; ", const std::string &secondaryDelimeter=":")

static bool	extractCommonChunks (const std::vector< std::string > &haystack, std::vector< std::string > &commonChunksToReturn, std::vector< std::string > &wildcardStrings, unsigned int &fixedWildcardLength)

static std::string	demangleTypeName (const char *name)

template<class T >
static std::string	getTypeName (void)

static std::string	stackTrace (void)

static std::string	exec (const char *cmd)

static char *	otsGetEnvironmentVarable (const char *name, const std::string &location, const unsigned int &line)

static std::string	extractXmlField (const std::string &xml, const std::string &field, uint32_t occurrence, size_t after, size_t *returnFindPos=nullptr, const std::string &valueField="value=", const std::string &quoteType="'")

static std::string	rextractXmlField (const std::string &xml, const std::string &field, uint32_t occurrence, size_t before, size_t *returnFindPos=nullptr, const std::string &valueField="value=", const std::string &quoteType="'")

static void	coutSplit (const std::string &str, uint8_t traceLevel=TLVL_DEBUG, const std::set< char > &delimiter={',', '\n', ';'})

Static Public Attributes
static std::map< std::string, std::map< std::string, std::string > >	systemVariables_

static const std::string	TBD = "To-be-defined"

Detailed Description

Definition at line 14 of file StringMacros.h.

Member Function Documentation

◆ convertEnvironmentVariables()

std::string StringMacros::convertEnvironmentVariables ( const std::string & data )

static

convertEnvironmentVariables ~ static recursive function

Allows environment variables entered as $NAME or ${NAME} or system variables entered as ${OTS.<variable>.<property>} (only bracket syntax allowed!) e.g. ${OTS.ActiveStateMachine.name} e.g. ${OTS.ActiveStateMachine.fileNameAlias} System variable are read from the static StringMacros map, which is generally filled by the host Supervisor.

Definition at line 593 of file StringMacros.cc.

◆ coutSplit()

void StringMacros::coutSplit	(	const std::string &	str,
		uint8_t	lvl = `TLVL_DEBUG`,
		const std::set< char > &	delimiter = `{',', '\n', ';'}`
	)

static

Breaks up long string into multiple TRACE TLOG calls split on the delimiter to avoid truncation by a single TLOG call. The lvl parameter is the offset from TLVL_DEBUG.

Definition at line 2106 of file StringMacros.cc.

◆ decodeURIComponent()

std::string StringMacros::decodeURIComponent ( const std::string & data )

static

decodeURIComponent converts all %## to the ascii character

Definition at line 185 of file StringMacros.cc.

◆ demangleTypeName()

std::string StringMacros::demangleTypeName ( const char * name )

static

demangleTypeName

Definition at line 2140 of file StringMacros.cc.

◆ escapeJSONStringEntities()

std::string StringMacros::escapeJSONStringEntities ( const std::string & str )

static

getEscapedValueAsString Returns string with special characters escaped for JSON Note: this should be useful for any values placed in double quotes, i.e. JSON. Reverse of restoreJSONStringEntities()

Definition at line 480 of file StringMacros.cc.

◆ escapeString()

std::string StringMacros::escapeString	(	std::string	inString,
		bool	allowWhiteSpace = `false`,
		bool	forHtml = `false`
	)

static

StringMacros::escapeString convert quotes to html quote characters ' = ' and " = " remove new line characters and (if !allowWhiteSpace) remove white space (so that read from file white space artifact removed)

convert & = & if(allowWhiteSpace) convert \t to 8   spaces and
to

if(forHtml) then double escape < > to < and > for better display in web browser

Definition at line 268 of file StringMacros.cc.

◆ exec()

std::string StringMacros::exec ( const char * cmd )

static

exec run linux command and get result back in string

Definition at line 1716 of file StringMacros.cc.

◆ extractCommonChunks()

bool StringMacros::extractCommonChunks	(	const std::vector< std::string > &	haystack,
		std::vector< std::string > &	commonChunksToReturn,
		std::vector< std::string > &	wildcardStringsToReturn,
		unsigned int &	fixedWildcardLength
	)

static

extractCommonChunks return the common chunks from the vector of strings e.g. if the strings were created from a template string like reader*_east*, this function will return a vector of size 3 := {"reader","_east",""} and a vector of wildcards that would replace the *

Returns true if common chunks and wildcards found, returns false if all inputs were the same (i.e. no wildcards needed)

Definition at line 1362 of file StringMacros.cc.

◆ extractXmlField()

std::string StringMacros::extractXmlField	(	const std::string &	xml,
		const std::string &	field,
		uint32_t	occurrence,
		size_t	after,
		size_t *	returnFindPos = `nullptr`,
		const std::string &	valueField = `"value="`,
		const std::string &	quoteType = `"'"`
	)

static

extract valueField for field from xml looking forwards from after occurence = 0 is first occurence

Definition at line 1951 of file StringMacros.cc.

◆ getMapFromString() [1/2]

template<class T , class S = std::string>

static void ots::StringMacros::getMapFromString	(	const std::string &	inputString,
		std::map< S, T > &	mapToReturn,
		const std::set< char > &	pairPairDelimiter = `{',', '\|', '&'}`,
		const std::set< char > &	nameValueDelimiter = `{'=', ':'}`,
		const std::set< char > &	whitespace = `{' ', '\t', '\n', '\r'}`
	)

static

getMapFromString ~

Parameters

inputString defined in included .icc source

◆ getMapFromString() [2/2]

void StringMacros::getMapFromString	(	const std::string &	inputString,
		std::map< std::string, std::string > &	mapToReturn,
		const std::set< char > &	pairPairDelimiter = `{',', '\|', '&'}`,
		const std::set< char > &	nameValueDelimiter = `{'=', ':'}`,
		const std::set< char > &	whitespace = `{' ', '\t', '\n', '\r'}`
	)

static

getMapFromString extracts the map of name-value pairs from string that uses two delimiters ignoring whitespace

Definition at line 1192 of file StringMacros.cc.

◆ getNumber() [1/2]

bool StringMacros::getNumber	(	const std::string &	s,
		bool &	retValue
	)

static

template<>

defined in included .icc source // Note: before call consider use of stringToCheck = StringMacros::convertEnvironmentVariables(stringToCheck)

for bool, but not all other number types return false if string is not a bool template<> inline bool StringMacros::getNumber<bool>(const std::string& s, bool& retValue)

Definition at line 914 of file StringMacros.cc.

◆ getNumber() [2/2]

template<class T >

static bool ots::StringMacros::getNumber	(	const std::string &	s,
		T &	retValue
	)

static

defined in included .icc source // Note: before call consider use of stringToCheck = StringMacros::convertEnvironmentVariables(stringToCheck)

◆ getNumberType()

std::string StringMacros::getNumberType ( const std::string & s )

static

Note: before call consider use of stringToCheck = StringMacros::convertEnvironmentVariables(stringToCheck)

getNumberType ~~ returns string of number type: "unsigned long long", "double" or else "nan" for not-a-number

Numbers can be hex ("0x.."), binary("b..."), or base10.

Definition at line 834 of file StringMacros.cc.

◆ getSetFromString()

void StringMacros::getSetFromString	(	const std::string &	inputString,
		std::set< std::string > &	setToReturn,
		const std::set< char > &	delimiter = `{',', '\|', '&'}`,
		const std::set< char > &	whitespace = `{' ', '\t', '\n', '\r'}`
	)

static

getSetFromString extracts the set of elements from string that uses a delimiter ignoring whitespace

Definition at line 1004 of file StringMacros.cc.

◆ getTimeDurationString()

std::string StringMacros::getTimeDurationString ( const time_t durationInSeconds = time(0) )

static

getTimeDurationString returns the duration HH:MM:SS with consideration for day(s)

Definition at line 963 of file StringMacros.cc.

◆ getTimestampString() [1/2]

std::string StringMacros::getTimestampString ( const std::string & linuxTimeInSeconds )

static

getTimestampString ~~ returns ots style timestamp string of known fixed size: Thu Aug 23 14:55:02 2001 CST

Definition at line 945 of file StringMacros.cc.

◆ getTimestampString() [2/2]

std::string StringMacros::getTimestampString ( const time_t linuxTimeInSeconds = time(0) )

static

getTimestampString ~~ returns ots style timestamp string of known fixed size: Thu Aug 23 14:55:02 2001 CST

Definition at line 955 of file StringMacros.cc.

◆ getVectorFromString() [1/2]

std::vector< std::string > StringMacros::getVectorFromString	(	const std::string &	inputString,
		const std::set< char > &	delimiter = `{',', '\|', '&'}`,
		const std::set< char > &	whitespace = `{' ', '\t', '\n', '\r'}`,
		std::vector< char > *	listOfDelimiters = `0`,
		bool	decodeURIComponents = `false`
	)

static

getVectorFromString extracts the list of elements from string that uses a delimiter ignoring whitespace optionally returns the list of delimiters encountered, which may be useful for extracting which operator was used.

Note: lists are returned as vectors Note: the size() of delimiters will be one less than the size() of the returned values unless there is a leading delimiter, in which case vectors will have the same size.

Definition at line 1170 of file StringMacros.cc.

◆ getVectorFromString() [2/2]

void StringMacros::getVectorFromString	(	const std::string &	inputString,
		std::vector< std::string > &	listToReturn,
		const std::set< char > &	delimiter = `{',', '\|', '&'}`,
		const std::set< char > &	whitespace = `{' ', '\t', '\n', '\r'}`,
		std::vector< char > *	listOfDelimiters = `0`,
		bool	decodeURIComponents = `false`
	)

static

getVectorFromString extracts the list of elements from string that uses a delimiter ignoring whitespace optionally returns the list of delimiters encountered, which may be useful for extracting which operator was used.

Note: lists are returned as vectors Note: the size() of delimiters will be one less than the size() of the returned values unless there is a leading delimiter, in which case vectors will have the same size.

Definition at line 1051 of file StringMacros.cc.

◆ getWildCardMatchFromMap()

template<class T >

static T& ots::StringMacros::getWildCardMatchFromMap	(	const std::string &	needle,
		std::map< std::string, T > &	haystack,
		std::string *	foundKey = `0`
	)

static

defined in included .icc source

getWildCardMatchFromMap ~ returns value if needle is in haystack otherwise throws exception (considering wildcards AND match priority as defined by StringMacros::wildCardMatch)

◆ inWildCardSet()

bool StringMacros::inWildCardSet	(	const std::string &	needle,
		const std::set< std::string > &	haystack
	)

static

inWildCardSet ~ returns true if needle is in haystack (considering wildcards) allow inverted haystack strings by first character being '!'

Definition at line 164 of file StringMacros.cc.

◆ isNumber()

bool StringMacros::isNumber ( const std::string & s )

static

Note: before call consider use of stringToCheck = StringMacros::convertEnvironmentVariables(stringToCheck)

isNumber ~~ returns true if one or many numbers separated by operations (+,-,/,*) is present in the string. Numbers can be hex ("0x.."), binary("b..."), or base10.

Definition at line 757 of file StringMacros.cc.

◆ mapToString() [1/2]

template<class S , class T >

static std::string ots::StringMacros::mapToString	(	const std::map< S, T > &	mapToReturn,
		const std::string &	primaryDelimeter = `", "`,
		const std::string &	secondaryDelimeter = `": "`
	)

static

Parameters

mapToReturn defined in included .icc source

◆ mapToString() [2/2]

template<class T >

static std::string ots::StringMacros::mapToString	(	const std::map< std::string, T > &	mapToReturn,
		const std::string &	primaryDelimeter = `", "`,
		const std::string &	secondaryDelimeter = `": "`
	)

static

mapToString ~ *ToString declarations (template definitions are in included .icc source)

Parameters

mapToReturn defined in included .icc source

◆ otsGetEnvironmentVarable()

char * StringMacros::otsGetEnvironmentVarable	(	const char *	name,
		const std::string &	location,
		const unsigned int &	line
	)

static

otsGetEnvironmentVarable declare special ots environment variable get, that throws exception instead of causing crashes with null pointer. Note: usually called with ENV(X) in CoutMacros.h

Definition at line 1933 of file StringMacros.cc.

◆ restoreJSONStringEntities()

std::string StringMacros::restoreJSONStringEntities ( const std::string & str )

static

restoreJSONStringEntities Returns string with literals
\t " \r \ replaced with char Reverse of escapeJSONStringEntities()

Definition at line 518 of file StringMacros.cc.

◆ rextractXmlField()

std::string StringMacros::rextractXmlField	(	const std::string &	xml,
		const std::string &	field,
		uint32_t	occurrence,
		size_t	before,
		size_t *	returnFindPos = `nullptr`,
		const std::string &	valueField = `"value="`,
		const std::string &	quoteType = `"'"`
	)

static

extract valueField for field from xml looking backwards from before occurence = 0 is first occurence

Definition at line 2030 of file StringMacros.cc.

◆ setToString()

template<class T >

static std::string ots::StringMacros::setToString	(	const std::set< T > &	setToReturn,
		const std::string &	delimeter = `", "`
	)

static

setToString ~

Parameters

setToReturn defined in included .icc source

◆ stackTrace()

std::string StringMacros::stackTrace ( void )

static

stackTrace static function https://gist.github.com/fmela/591333/c64f4eb86037bb237862a8283df70cdfc25f01d3

Definition at line 1836 of file StringMacros.cc.

◆ trim()

const std::string & StringMacros::trim ( std::string & s )

static

StringMacros::trim Remove whitespace like JavaScript trim()

Definition at line 567 of file StringMacros.cc.

◆ validateValueForDefaultStringDataType() [1/2]

template<class T >

static T ots::StringMacros::validateValueForDefaultStringDataType	(	const std::string &	value,
		bool	doConvertEnvironmentVariables = `true`
	)

static

validateValueForDefaultStringDataType ~ special validation ignoring any table info - just assuming type string

Parameters

value defined in included .icc source

◆ validateValueForDefaultStringDataType() [2/2]

std::string StringMacros::validateValueForDefaultStringDataType	(	const std::string &	value,
		bool	doConvertEnvironmentVariables = `true`
	)

static

validateValueForDefaultStringDataType

Definition at line 985 of file StringMacros.cc.

◆ vectorToString()

template<class T >

static std::string ots::StringMacros::vectorToString	(	const std::vector< T > &	setToReturn,
		const std::string &	delimeter = `", "`
	)

static

vectorToString ~

Parameters

setToReturn defined in included .icc source

◆ wildCardMatch()

bool StringMacros::wildCardMatch	(	const std::string &	needle,
		const std::string &	haystack,
		unsigned int *	priorityIndex = `0`
	)

static

Here is the list of static helper functions:

wildCardMatch
inWildCardSet
getWildCardMatchFromMap

decodeURIComponent
encodeURIComponent
sanitizeForSQL
escapeString
escapeJSONStringEntities
restoreJSONStringEntities
trim
convertEnvironmentVariables
isNumber
getNumber
getTimestampString
getTimeDurationString

validateValueForDefaultStringDataType

getSetFromString
getVectorFromString
getMapFromString

setToString
vectorToString
mapToString

demangleTypeName
getTypeName
stackTrace
exec
otsGetEnvironmentVarable
extractXmlField
rextractXmlField
coutSplit

End list of static helper functions:

wildCardMatch find needle in haystack allow needle to have wildcard '*' anywhere consider priority in matching, no matter the order in the haystack:

0: no match!
1: highest priority is exact match
2: next highest is partial TRAILING-wildcard match
3: next highest is partial LEADING-wildcard match
4: lowest priority is wildcard match (including internal '*')
5: wildcard-only match return priority found by reference

Definition at line 49 of file StringMacros.cc.

The documentation for this struct was generated from the following files:

otsdaq/otsdaq/Macros/StringMacros.h
otsdaq/otsdaq/Macros/StringMacros.cc

Classes

Static Public Member Functions

Static Public Attributes

Detailed Description

Member Function Documentation

◆ convertEnvironmentVariables()

◆ coutSplit()

◆ decodeURIComponent()

◆ demangleTypeName()

◆ escapeJSONStringEntities()

◆ escapeString()

◆ exec()

◆ extractCommonChunks()

◆ extractXmlField()

◆ getMapFromString() [1/2]

◆ getMapFromString() [2/2]

◆ getNumber() [1/2]

◆ getNumber() [2/2]

◆ getNumberType()

◆ getSetFromString()

◆ getTimeDurationString()

◆ getTimestampString() [1/2]

◆ getTimestampString() [2/2]

◆ getVectorFromString() [1/2]

◆ getVectorFromString() [2/2]

◆ getWildCardMatchFromMap()

◆ inWildCardSet()

◆ isNumber()

◆ mapToString() [1/2]

◆ mapToString() [2/2]

◆ otsGetEnvironmentVarable()

◆ restoreJSONStringEntities()

◆ rextractXmlField()

◆ setToString()

◆ stackTrace()

◆ trim()

◆ validateValueForDefaultStringDataType() [1/2]

◆ validateValueForDefaultStringDataType() [2/2]

◆ vectorToString()

◆ wildCardMatch()
