#include <otsdaq/GatewaySupervisor/GatewaySupervisor.h>

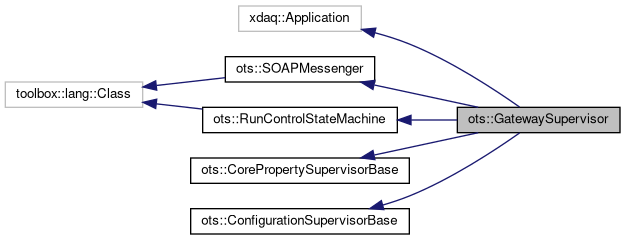

Inheritance diagram for ots::GatewaySupervisor:

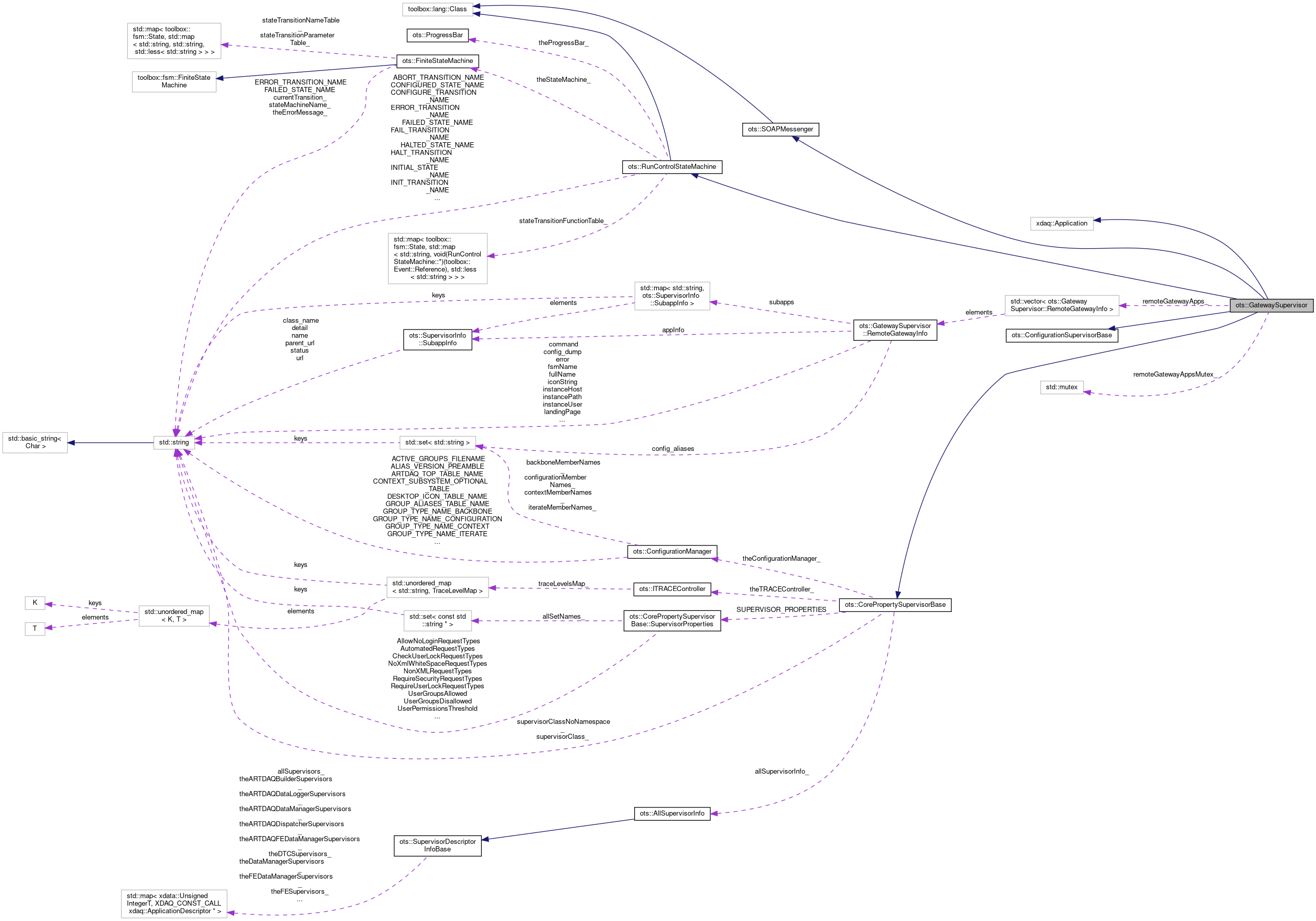

Collaboration diagram for ots::GatewaySupervisor:

Classes
struct	RemoteGatewayInfo

Public Member Functions
	XDAQ_INSTANTIATOR ()

	GatewaySupervisor (xdaq::ApplicationStub *s)

void	init (void)

void	Default (xgi::Input in, xgi::Output out)

void	loginRequest (xgi::Input in, xgi::Output out)

void	request (xgi::Input in, xgi::Output out)

void	tooltipRequest (xgi::Input in, xgi::Output out)

void	XGI_Turtle (xgi::Input in, xgi::Output out)

void	addStateMachineStatusToXML (HttpXmlDocument &xmlOut, const std::string &fsmName, bool getRunNumber=true)

void	addFilteredConfigAliasesToXML (HttpXmlDocument &xmlOut, const std::string &fsmName)

void	addRequiredFsmLogInputToXML (HttpXmlDocument &xmlOut, const std::string &fsmName)

void	stateMachineXgiHandler (xgi::Input in, xgi::Output out)

void	stateMachineIterationBreakpoint (xgi::Input in, xgi::Output out)

xoap::MessageReference	stateMachineXoapHandler (xoap::MessageReference msg)

bool	stateMachineThread (toolbox::task::WorkLoop *workLoop)

void	statusRequest (xgi::Input in, xgi::Output out)

void	infoRequestResultHandler (xgi::Input in, xgi::Output out)

bool	infoRequestThread (toolbox::task::WorkLoop *workLoop)

xoap::MessageReference	supervisorCookieCheck (xoap::MessageReference msg)

xoap::MessageReference	supervisorGetActiveUsers (xoap::MessageReference msg)

xoap::MessageReference	supervisorSystemMessage (xoap::MessageReference msg)

xoap::MessageReference	supervisorGetUserInfo (xoap::MessageReference msg)

xoap::MessageReference	supervisorSystemLogbookEntry (xoap::MessageReference msg)

xoap::MessageReference	supervisorLastTableGroupRequest (xoap::MessageReference msg)

void	stateInitial (toolbox::fsm::FiniteStateMachine &fsm) override

void	statePaused (toolbox::fsm::FiniteStateMachine &fsm) override

void	stateRunning (toolbox::fsm::FiniteStateMachine &fsm) override

void	stateHalted (toolbox::fsm::FiniteStateMachine &fsm) override

void	stateConfigured (toolbox::fsm::FiniteStateMachine &fsm) override

void	inError (toolbox::fsm::FiniteStateMachine &fsm) override

void	transitionConfiguring (toolbox::Event::Reference e) override

void	transitionHalting (toolbox::Event::Reference e) override

void	transitionInitializing (toolbox::Event::Reference e) override

void	transitionPausing (toolbox::Event::Reference e) override

void	transitionResuming (toolbox::Event::Reference e) override

void	transitionStarting (toolbox::Event::Reference e) override

void	transitionStopping (toolbox::Event::Reference e) override

void	transitionShuttingDown (toolbox::Event::Reference e) override

void	transitionStartingUp (toolbox::Event::Reference e) override

void	enteringError (toolbox::Event::Reference e) override

void	makeSystemLogEntry (const std::string &entryText, const std::string &subjectText="", bool skipFooter=false)

void	checkForAsyncError (void)

void	joinConfigDumpCachingThread (void)
	reap the deferred dump-caching thread; safe when none is running

virtual void	setSupervisorPropertyDefaults (void) override
	override to control supervisor specific defaults

virtual void	forceSupervisorPropertyValues (void) override
	override to force supervisor property values (and ignore user settings)

bool	isRemoteGatewayIncludedInBroadcast (const RemoteGatewayInfo &remoteGatewayApp) const

void	loadRemoteGatewaySettings (std::vector< GatewaySupervisor::RemoteGatewayInfo > &remoteGateways, bool onlyNotFound=false) const

void	saveRemoteGatewaySettings (void) const

Public Member Functions inherited from ots::SOAPMessenger
	SOAPMessenger (xdaq::Application *application)

	SOAPMessenger (const SOAPMessenger &aSOAPMessenger)

std::string	send (XDAQ_CONST_CALL xdaq::ApplicationDescriptor *d, xoap::MessageReference message)

std::string	send (XDAQ_CONST_CALL xdaq::ApplicationDescriptor *d, SOAPCommand soapCommand)

std::string	send (XDAQ_CONST_CALL xdaq::ApplicationDescriptor *d, std::string command)

std::string	send (XDAQ_CONST_CALL xdaq::ApplicationDescriptor *d, std::string command, SOAPParameters parameters)

std::string	sendStatus (XDAQ_CONST_CALL xdaq::ApplicationDescriptor *d, std::string message)

xoap::MessageReference	sendWithSOAPReply (XDAQ_CONST_CALL xdaq::ApplicationDescriptor *d, xoap::MessageReference message)

xoap::MessageReference	sendWithSOAPReply (XDAQ_CONST_CALL xdaq::ApplicationDescriptor *d, SOAPCommand soapCommand)

xoap::MessageReference	sendWithSOAPReply (XDAQ_CONST_CALL xdaq::ApplicationDescriptor *d, std::string command)

xoap::MessageReference	sendWithSOAPReply (XDAQ_CONST_CALL xdaq::ApplicationDescriptor *d, std::string command, SOAPParameters parameters)

Public Member Functions inherited from ots::RunControlStateMachine
	RunControlStateMachine (const std::string &name="Undefined Name")

void	reset (void)

void	setStateMachineName (const std::string &name)

const std::string &	getErrorMessage (void) const

void	setAsyncPauseExceptionMessage (const std::string &error)

void	setAsyncStopExceptionMessage (const std::string &error)

template<class OBJECT >
void	addStateTransition (toolbox::fsm::State from, toolbox::fsm::State to, const std::string &input, const std::string &transitionName, OBJECT obj, void(OBJECT::func)(toolbox::Event::Reference))

template<class OBJECT >
void	addStateTransition (toolbox::fsm::State from, toolbox::fsm::State to, const std::string &input, const std::string &transitionName, const std::string &transitionParameter, OBJECT obj, void(OBJECT::func)(toolbox::Event::Reference))

virtual void	stateShutdown (toolbox::fsm::FiniteStateMachine &)

xoap::MessageReference	runControlMessageHandler (xoap::MessageReference message)
	Run Control Messages. More...

unsigned int	getSubsystemIterationIndex (void) const

bool	isStandaloneSubsystem (void) const

bool	isFirstIteration (void) const
	true on the very first call of a transition (all indices at their starting value)

unsigned int	getSubsystemSyncStepIndex (void) const

void	indicateSubsystemSyncStepWork (void)

void	indicateSubsystemIterationWork (void)

void	clearSubsystemIterationWork (void)

bool	getSubsystemIterationWork (void)

unsigned int	getIterationIndex (void)

unsigned int	getSubIterationIndex (void)

unsigned int	getMinReadyForEventGenerationStartIteration (void)

void	indicateIterationWork (void)

void	clearIterationWork (void)

bool	getIterationWork (void)

void	indicateSubIterationWork (void)

void	clearSubIterationWork (void)

bool	getSubIterationWork (void)

const std::string &	getLastCommand (void)

const std::string &	getLastAttemptedConfigureGroup (void)

Public Member Functions inherited from ots::CorePropertySupervisorBase
	CorePropertySupervisorBase (xdaq::Application *application)

XDAQ_CONST_CALL xdaq::ApplicationDescriptor *	getGatewaySupervisorDescriptor (void)
	will be wizard supervisor in wiz mode More...

void	getRequestUserInfo (WebUsers::RequestUserInfo &requestUserInfo)

ConfigurationTree	getContextTreeNode (void) const

ConfigurationTree	getSupervisorTableNode (void) const

const std::string &	getContextUID (void) const

const std::string &	getSupervisorUID (void) const

const std::string &	getSupervisorConfigurationPath (void) const

void	resetPropertiesAreSetup (void)

ConfigurationTree	getSupervisorTreeNode (void)

void	loadUserSupervisorProperties (void)

template<class T >
void	setSupervisorProperty (const std::string &propertyName, const T &propertyValue)

void	setSupervisorProperty (const std::string &propertyName, const std::string &propertyValue)

template<class T >
void	addSupervisorProperty (const std::string &propertyName, const T &propertyValue)

void	addSupervisorProperty (const std::string &propertyName, const std::string &propertyValue)

template<class T >
T	getSupervisorProperty (const std::string &propertyName)

template<class T >
T	getSupervisorProperty (const std::string &propertyName, const T &defaultValue)

std::string	getSupervisorProperty (const std::string &propertyName)

std::string	getSupervisorProperty (const std::string &propertyName, const std::string &defaultValue)
	getSupervisorProperty

WebUsers::permissionLevel_t	getSupervisorPropertyUserPermissionsThreshold (const std::string &requestType)

time_t	getSupervisorUptime (void) const

bool	isFirstAppInContext (void) const

uint64_t	getAvailableLogSpaceKB (void)

uint64_t	getAvailableDataSpaceKB (void)

bool	isReadOnly (void) const

Static Public Member Functions
static std::string	getGlobalFieldsString (ConfigurationManager *cfgMgr, const std::map< std::string, TableVersion > &memberMap={})

static std::string	getIconHeaderString (void)

static bool	handleAddDesktopIconRequest (const std::string &author, cgicc::Cgicc &cgiIn, HttpXmlDocument &xmlOut, std::vector< DesktopIconTable::DesktopIcon > *newIcons=nullptr)

static void	handleGetApplicationIdRequest (AllSupervisorInfo applicationInfo, cgicc::Cgicc &cgiIn, HttpXmlDocument &xmlOut, std::map< std::string, std::map< std::string, std::string >> portTranslationMap=nullptr)

static void	addSystemMessage (std::string toUserCSV, std::string message)

static void	CheckRemoteGatewayStatus (GatewaySupervisor::RemoteGatewayInfo &remoteGatewayApp, const std::unique_ptr< TransceiverSocket > &remoteGatewaySocket, const std::string &ipForReverseLoginOverUDP, int portForReverseLoginOverUDP, const std::string &contextCommonList="", const std::string &contextCommonOverrideList="")

static void	SendRemoteGatewayCommand (GatewaySupervisor::RemoteGatewayInfo &remoteGatewayApp, const std::unique_ptr< TransceiverSocket > &remoteGatewaySocket)

static void	applyContextCommonTables (GatewaySupervisor *supervisor, const std::string &contextCommonList, const std::string &contextCommonOverrideList)

static void	GetRemoteGatewayIcons (GatewaySupervisor::RemoteGatewayInfo &remoteGatewayApp, const std::unique_ptr< TransceiverSocket > &remoteGatewaySocket)

static std::string	translateURLForRequestOrigin (const std::string &url, const std::string &requestOrigin, std::map< std::string, std::map< std::string, std::string >> &portTranslationMap)

static std::string	translateRemoteIconStringForRequestOrigin (const std::string &iconString, const std::string &requestOrigin, std::map< std::string, std::map< std::string, std::string >> &portTranslationMap)

Static Public Member Functions inherited from ots::CorePropertySupervisorBase
static void	extractPermissionsMapFromString (const std::string &permissionsString, std::map< std::string, WebUsers::permissionLevel_t > &permissionsMap)

static bool	doPermissionsGrantAccess (std::map< std::string, WebUsers::permissionLevel_t > &permissionLevelsMap, std::map< std::string, WebUsers::permissionLevel_t > &permissionThresholdsMap)

Static Public Member Functions inherited from ots::ConfigurationSupervisorBase
static std::pair< std::string, TableGroupKey >	setGroupAliasesInActiveBackbone (ConfigurationManagerRW *cfgMgr, const std::vector< GroupAliasEdit > &aliasEdits)

static void	getConfigurationStatusXML (HttpXmlDocument &xmlOut, ConfigurationManagerRW *cfgMgr, const std::string &username)
	getConfigurationStatusXML

static TableVersion	saveModifiedVersionXML (HttpXmlDocument &xmlOut, ConfigurationManagerRW cfgMgr, const std::string &tableName, TableVersion originalVersion, bool makeTemporary, TableBase config, TableVersion temporaryModifiedVersion, bool ignoreDuplicates=false, bool lookForEquivalent=false)

static void	handleCreateTableXML (HttpXmlDocument &xmlOut, ConfigurationManagerRW *cfgMgr, const std::string &tableName, TableVersion version, bool makeTemporary, const std::string &data, const int &dataOffset, const std::string &author, const std::string &comment, bool sourceTableAsIs, bool lookForEquivalent)

static void	handleCreateTableGroupXML (HttpXmlDocument &xmlOut, ConfigurationManagerRW *cfgMgr, const std::string &groupName, const std::string &configList, bool allowDuplicates=false, bool ignoreWarnings=false, const std::string &groupComment="", bool lookForEquivalent=false)

static void	handleGetTableGroupXML (HttpXmlDocument &xmlOut, ConfigurationManagerRW *cfgMgr, const std::string &groupName, TableGroupKey groupKey, bool ignoreWarnings=false, bool cacheOnly=false)

static bool	handleAddDesktopIconXML (HttpXmlDocument &xmlOut, ConfigurationManagerRW *cfgMgr, const std::string &iconCaption, const std::string &iconAltText, const std::string &iconFolderPath, const std::string &iconImageURL, const std::string &iconWindowURL, const std::string &iconPermissions, std::string windowLinkedApp="", unsigned int windowLinkedAppLID=0, bool enforceOneWindowInstance=false, const std::string &windowParameters="")

static void	recursiveCopyTreeUIDNode (HttpXmlDocument &xmlOut, ConfigurationManagerRW cfgMgr, std::map< std::string, TableVersion > &modifiedTablesMap, const unsigned int startingDepth, const unsigned int depth, const unsigned int numberOfInstances, TableView cfgView, const std::string &uidToCopy)

Public Attributes
std::vector< GatewaySupervisor::RemoteGatewayInfo >	remoteGatewayApps_

std::mutex	remoteGatewayAppsMutex_

std::set< std::string >	broadcastIncludedRemoteGatewayNames_

std::map< std::string, bool >	appLastStatusGood_

std::mutex	dualStatusThreadMutex_

std::string	ipAddressForStateChangesOverUDP_
	IP used for UDP reverse-login propagation to remote gateways.

int	portForReverseLoginOverUDP_ = 0
	UDP port for reverse-login; 0 = disabled.

std::map< unsigned int, SupervisorInfo >	localAllSupervisorInfo_
	only use in main thread, stable copy of app status

std::mutex	latestGatewayIconsMutex_

std::vector< DesktopIconTable::DesktopIcon >	latestGatewayIcons_
	used to track the latest desktop icons (which are defined by the active context but allowed to change dynamically)

std::pair< std::string, TableGroupKey >	latestGatewayIconsContextGroup_
	used to track the table group key for the latest desktop icons

std::string	latestGatewayRemoteIconsString_
	cached string of remote gateway icons for quick access

std::pair< std::string, TableGroupKey >	latestGatewayRemoteIconsContextGroup_
	used to track the table group key for the latest remote desktop icons

std::string	cachedGlobalFieldsString_

std::pair< std::string, TableGroupKey >	cachedGlobalFieldsGroup_

Public Attributes inherited from ots::CorePropertySupervisorBase
AllSupervisorInfo	allSupervisorInfo_

ConfigurationManager *	theConfigurationManager_

Friends
class	WizardSupervisor

class	Iterator

Additional Inherited Members
Static Public Attributes inherited from ots::RunControlStateMachine
static const std::string	FAILED_STATE_NAME = FiniteStateMachine::FAILED_STATE_NAME

static const std::string	INITIAL_STATE_NAME = FiniteStateMachine::INITIAL_STATE_NAME

static const std::string	HALTED_STATE_NAME = "Halted"

static const std::string	PAUSED_STATE_NAME = "Paused"

static const std::string	RUNNING_STATE_NAME = "Running"

static const std::string	SHUTDOWN_STATE_NAME = "Shutdown"

static const std::string	CONFIGURED_STATE_NAME = "Configured"

static const std::string	SHUTDOWN_TRANSITION_NAME = "Shutdown"

static const std::string	STARTUP_TRANSITION_NAME = "Startup"

static const std::string	INIT_TRANSITION_NAME = "Initialize"

static const std::string	ERROR_TRANSITION_NAME = FiniteStateMachine::ERROR_TRANSITION_NAME

static const std::string	FAIL_TRANSITION_NAME = "Fail"

static const std::string	CONFIGURE_TRANSITION_NAME = FiniteStateMachine::CONFIGURE_TRANSITION_NAME

static const std::string	HALT_TRANSITION_NAME = "Halt"

static const std::string	ABORT_TRANSITION_NAME = "Abort"

static const std::string	PAUSE_TRANSITION_NAME = "Pause"

static const std::string	RESUME_TRANSITION_NAME = "Resume"

static const std::string	START_TRANSITION_NAME = "Start"

static const std::string	STOP_TRANSITION_NAME = "Stop"

Protected Member Functions inherited from ots::CorePropertySupervisorBase
xoap::MessageReference	TRACESupervisorRequest (xoap::MessageReference message)

const std::string &	getTraceLevels (void)

const std::string &	setTraceLevels (std::string const &host, std::string const &mode, std::string const &labelsStr, uint32_t setValueMSB, uint32_t setValueLSB)

const std::string &	setIndividualTraceLevels (std::string const &host, std::string const &mode, std::string const &labelValuesStr)

const std::string &	getTraceTriggerStatus (void)

const std::string &	setTraceTriggerEnable (std::string const &host, size_t entriesAfterTrigger)

const std::string &	resetTRACE (std::string const &host)

const std::string &	enableTRACE (std::string const &host, bool enable)

const std::string &	getTraceSnapshot (std::string const &host, std::string const &filterFor, std::string const &filterOut)

Static Protected Member Functions inherited from ots::CorePropertySupervisorBase
static void	indicateOtsAlive (const CorePropertySupervisorBase *properties=0)

static void	indicateOtsDead (const CorePropertySupervisorBase *properties=0)

Protected Attributes inherited from ots::SOAPMessenger
xdaq::Application *	theApplication_

Protected Attributes inherited from ots::RunControlStateMachine
FiniteStateMachine	theStateMachine_

ProgressBar	theProgressBar_

std::atomic< bool >	asyncFailureReceived_ {false}

std::atomic< bool >	asyncPauseExceptionReceived_ {false}

std::atomic< bool >	asyncStopExceptionReceived_ {false}

unsigned int	subsystemIterationIndex_ = 0

unsigned int	iterationIndex_ = 0

unsigned int	subIterationIndex_ = 0

bool	subsystemIterationWorkFlag_

bool	iterationWorkFlag_

bool	subIterationWorkFlag_

unsigned int	minReadyForEventGenerationStartIteration_ = 0

toolbox::fsm::State	lastIterationState_

std::string	lastIterationCommand_

std::string	lastAttemptedConfigureGroup_

std::string	lastIterationResult_

unsigned int	lastSubsystemIterationIndex_

unsigned int	lastIterationIndex_

unsigned int	lastSubIterationIndex_

std::map< toolbox::fsm::State, std::map< std::string, void(RunControlStateMachine::*)(toolbox::Event::Reference), std::less< std::string > > >	stateTransitionFunctionTable_

Protected Attributes inherited from ots::CorePropertySupervisorBase
const std::string	supervisorClass_

const std::string	supervisorClassNoNamespace_

ITRACEController *	theTRACEController_
	only define for an app that receives a command

Static Protected Attributes inherited from ots::CorePropertySupervisorBase
static const struct ots::CorePropertySupervisorBase::SupervisorProperties	SUPERVISOR_PROPERTIES

Detailed Description

GatewaySupervisor This class is the gateway server for all otsdaq requests in "Normal Mode." It validates user access for every request. It synchronizes the state machines of all other supervisors.

Definition at line 76 of file GatewaySupervisor.h.

Member Function Documentation

◆ stateConfigured()

void ots::GatewaySupervisor::stateConfigured ( toolbox::fsm::FiniteStateMachine & )

overridevirtual

XDAQ applications are configured.
Run parameters have been distributed.
Hardware is configured.
I2O connections are established, no data is sent or read out.
Triggers are not sent.

Reimplemented from ots::RunControlStateMachine.

◆ stateHalted()

void ots::GatewaySupervisor::stateHalted ( toolbox::fsm::FiniteStateMachine & )

overridevirtual

Control hierarchy is instantiated.
XDAQ executives are running and configured.
XDAQ applications are loaded and instantiated.
DCS nodes are allocated.

Reimplemented from ots::RunControlStateMachine.

◆ stateInitial()

void ots::GatewaySupervisor::stateInitial ( toolbox::fsm::FiniteStateMachine & )

overridevirtual

using stateMachineFunction_t = void (ots::RunControlStateMachine::* )(toolbox::Event::Reference); stateMachineFunction_t getTransitionFunction (const toolbox::fsm::State from, const std::string &transition);

Finite State Machine States

Control Configuration and Function Manager are loaded.

Reimplemented from ots::RunControlStateMachine.

◆ statePaused()

void ots::GatewaySupervisor::statePaused ( toolbox::fsm::FiniteStateMachine & )

overridevirtual

XDAQ applications are running.
Hardware is running.
Triggers are accepted.
Triggers are not sent.
Data is sent / read out.

Reimplemented from ots::RunControlStateMachine.

◆ stateRunning()

void ots::GatewaySupervisor::stateRunning ( toolbox::fsm::FiniteStateMachine & )

overridevirtual

XDAQ applications are running.
Hardware is running.
Triggers are accepted.
Triggers are sent.
Data is sent / read out.

Reimplemented from ots::RunControlStateMachine.

Member Data Documentation

◆ remoteGatewayAppsMutex_

std::mutex ots::GatewaySupervisor::remoteGatewayAppsMutex_

Remote gateways (by fullName) that were fsm_included when the current broadcast began. Captured once per transition in broadcastMessage() so that an include/exclude change made by a user mid-transition cannot make the completion poll wait on (or ignore) a subsystem that the send step treated differently. Re-captured on the next transition.

Definition at line 527 of file GatewaySupervisor.h.

The documentation for this class was generated from the following file:

otsdaq/otsdaq/GatewaySupervisor/GatewaySupervisor.h

Classes

Public Member Functions

Static Public Member Functions

Public Attributes

Friends

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ stateConfigured()

◆ stateHalted()

◆ stateInitial()

◆ statePaused()

◆ stateRunning()

Member Data Documentation

◆ remoteGatewayAppsMutex_
