#include <otsdaq/FiniteStateMachine/RunControlStateMachine.h>

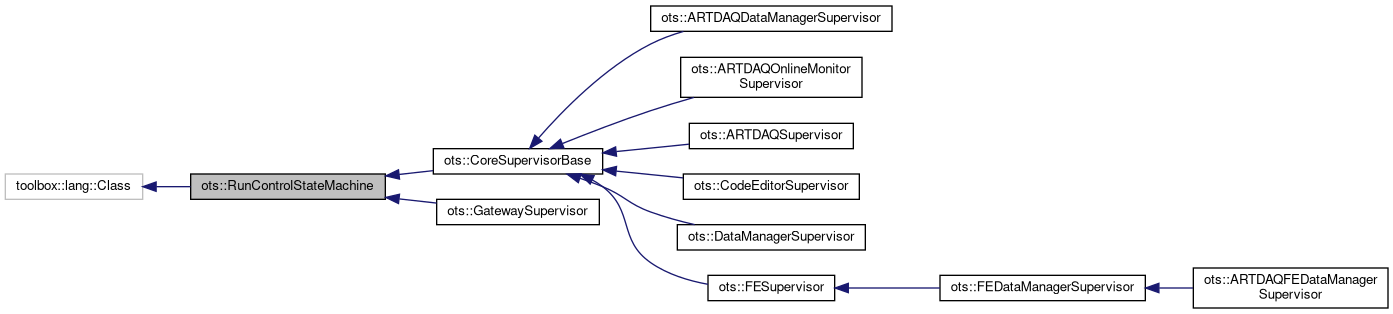

Inheritance diagram for ots::RunControlStateMachine:

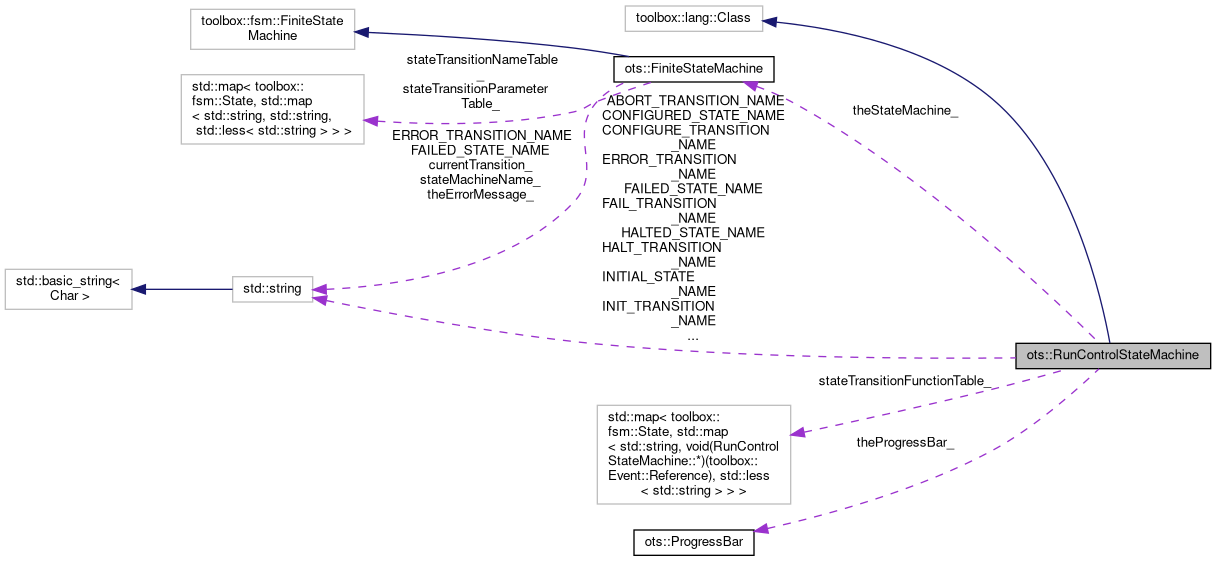

Collaboration diagram for ots::RunControlStateMachine:

Public Member Functions
	RunControlStateMachine (const std::string &name="Undefined Name")

void	reset (void)

void	setStateMachineName (const std::string &name)

const std::string &	getErrorMessage (void) const

void	setAsyncPauseExceptionMessage (const std::string &error)

void	setAsyncStopExceptionMessage (const std::string &error)

template<class OBJECT >
void	addStateTransition (toolbox::fsm::State from, toolbox::fsm::State to, const std::string &input, const std::string &transitionName, OBJECT obj, void(OBJECT::func)(toolbox::Event::Reference))

template<class OBJECT >
void	addStateTransition (toolbox::fsm::State from, toolbox::fsm::State to, const std::string &input, const std::string &transitionName, const std::string &transitionParameter, OBJECT obj, void(OBJECT::func)(toolbox::Event::Reference))

virtual void	stateInitial (toolbox::fsm::FiniteStateMachine &)

virtual void	statePaused (toolbox::fsm::FiniteStateMachine &)

virtual void	stateRunning (toolbox::fsm::FiniteStateMachine &)

virtual void	stateHalted (toolbox::fsm::FiniteStateMachine &)

virtual void	stateShutdown (toolbox::fsm::FiniteStateMachine &)

virtual void	stateConfigured (toolbox::fsm::FiniteStateMachine &)

virtual void	inError (toolbox::fsm::FiniteStateMachine &)

virtual void	transitionConfiguring (toolbox::Event::Reference)

virtual void	transitionHalting (toolbox::Event::Reference)

virtual void	transitionShuttingDown (toolbox::Event::Reference)

virtual void	transitionStartingUp (toolbox::Event::Reference)

virtual void	transitionInitializing (toolbox::Event::Reference)

virtual void	transitionPausing (toolbox::Event::Reference)

virtual void	transitionResuming (toolbox::Event::Reference)

virtual void	transitionStarting (toolbox::Event::Reference)

virtual void	transitionStopping (toolbox::Event::Reference)

virtual void	enteringError (toolbox::Event::Reference)

xoap::MessageReference	runControlMessageHandler (xoap::MessageReference message)
	Run Control Messages. More...

unsigned int	getSubsystemIterationIndex (void) const

bool	isStandaloneSubsystem (void) const

bool	isFirstIteration (void) const
	true on the very first call of a transition (all indices at their starting value)

unsigned int	getSubsystemSyncStepIndex (void) const

void	indicateSubsystemSyncStepWork (void)

void	indicateSubsystemIterationWork (void)

void	clearSubsystemIterationWork (void)

bool	getSubsystemIterationWork (void)

unsigned int	getIterationIndex (void)

unsigned int	getSubIterationIndex (void)

unsigned int	getMinReadyForEventGenerationStartIteration (void)

void	indicateIterationWork (void)

void	clearIterationWork (void)

bool	getIterationWork (void)

void	indicateSubIterationWork (void)

void	clearSubIterationWork (void)

bool	getSubIterationWork (void)

const std::string &	getLastCommand (void)

const std::string &	getLastAttemptedConfigureGroup (void)

Static Public Attributes
static const std::string	FAILED_STATE_NAME = FiniteStateMachine::FAILED_STATE_NAME

static const std::string	INITIAL_STATE_NAME = FiniteStateMachine::INITIAL_STATE_NAME

static const std::string	HALTED_STATE_NAME = "Halted"

static const std::string	PAUSED_STATE_NAME = "Paused"

static const std::string	RUNNING_STATE_NAME = "Running"

static const std::string	SHUTDOWN_STATE_NAME = "Shutdown"

static const std::string	CONFIGURED_STATE_NAME = "Configured"

static const std::string	SHUTDOWN_TRANSITION_NAME = "Shutdown"

static const std::string	STARTUP_TRANSITION_NAME = "Startup"

static const std::string	INIT_TRANSITION_NAME = "Initialize"

static const std::string	ERROR_TRANSITION_NAME = FiniteStateMachine::ERROR_TRANSITION_NAME

static const std::string	FAIL_TRANSITION_NAME = "Fail"

static const std::string	CONFIGURE_TRANSITION_NAME = FiniteStateMachine::CONFIGURE_TRANSITION_NAME

static const std::string	HALT_TRANSITION_NAME = "Halt"

static const std::string	ABORT_TRANSITION_NAME = "Abort"

static const std::string	PAUSE_TRANSITION_NAME = "Pause"

static const std::string	RESUME_TRANSITION_NAME = "Resume"

static const std::string	START_TRANSITION_NAME = "Start"

static const std::string	STOP_TRANSITION_NAME = "Stop"

Protected Attributes
FiniteStateMachine	theStateMachine_

ProgressBar	theProgressBar_

std::atomic< bool >	asyncFailureReceived_ {false}

std::atomic< bool >	asyncPauseExceptionReceived_ {false}

std::atomic< bool >	asyncStopExceptionReceived_ {false}

unsigned int	subsystemIterationIndex_ = 0

unsigned int	iterationIndex_ = 0

unsigned int	subIterationIndex_ = 0

bool	subsystemIterationWorkFlag_

bool	iterationWorkFlag_

bool	subIterationWorkFlag_

unsigned int	minReadyForEventGenerationStartIteration_ = 0

toolbox::fsm::State	lastIterationState_

std::string	lastIterationCommand_

std::string	lastAttemptedConfigureGroup_

std::string	lastIterationResult_

unsigned int	lastSubsystemIterationIndex_

unsigned int	lastIterationIndex_

unsigned int	lastSubIterationIndex_

std::map< toolbox::fsm::State, std::map< std::string, void(RunControlStateMachine::*)(toolbox::Event::Reference), std::less< std::string > > >	stateTransitionFunctionTable_

Detailed Description

CoreSupervisorBase This class provides finite state machine functionality for otsdaq supervisors.

Definition at line 16 of file RunControlStateMachine.h.

Member Function Documentation

◆ getSubsystemSyncStepIndex()

unsigned int ots::RunControlStateMachine::getSubsystemSyncStepIndex ( void ) const

inline

For steps that must be ordered across subsystems: the subsystem-iteration index under a top-level, or the plain iteration index when standalone (see VStateMachine).

Definition at line 156 of file RunControlStateMachine.h.

◆ runControlMessageHandler()

xoap::MessageReference RunControlStateMachine::runControlMessageHandler ( xoap::MessageReference message )

Run Control Messages.

============================================================================== (RunControlStateMachine::stateMachineFunction_t) RunControlStateMachine::getTransitionName( const toolbox::fsm::State from, const std::string& transition) runControlMessageHandler Handles the command broadcast message from the Gateway Supervisor and maps the command to a transition function, allowing for multiple iteration passes through the transition function.

Definition at line 331 of file RunControlStateMachine.cc.

◆ stateConfigured()

virtual void ots::RunControlStateMachine::stateConfigured ( toolbox::fsm::FiniteStateMachine & )

inlinevirtual

XDAQ applications are configured.
Run parameters have been distributed.
Hardware is configured.
I2O connections are established, no data is sent or read out.
Triggers are not sent.

Reimplemented in ots::GatewaySupervisor, and ots::CoreSupervisorBase.

Definition at line 106 of file RunControlStateMachine.h.

◆ stateHalted()

virtual void ots::RunControlStateMachine::stateHalted ( toolbox::fsm::FiniteStateMachine & )

inlinevirtual

Control hierarchy is instantiated.
XDAQ executives are running and configured.
XDAQ applications are loaded and instantiated.
DCS nodes are allocated.

Reimplemented in ots::GatewaySupervisor, and ots::CoreSupervisorBase.

Definition at line 96 of file RunControlStateMachine.h.

◆ stateInitial()

virtual void ots::RunControlStateMachine::stateInitial ( toolbox::fsm::FiniteStateMachine & )

inlinevirtual

using stateMachineFunction_t = void (ots::RunControlStateMachine::* )(toolbox::Event::Reference); stateMachineFunction_t getTransitionFunction (const toolbox::fsm::State from, const std::string &transition);

Finite State Machine States

Control Configuration and Function Manager are loaded.

Reimplemented in ots::GatewaySupervisor, and ots::CoreSupervisorBase.

Definition at line 76 of file RunControlStateMachine.h.

◆ statePaused()

virtual void ots::RunControlStateMachine::statePaused ( toolbox::fsm::FiniteStateMachine & )

inlinevirtual

XDAQ applications are running.
Hardware is running.
Triggers are accepted.
Triggers are not sent.
Data is sent / read out.

Reimplemented in ots::GatewaySupervisor, and ots::CoreSupervisorBase.

Definition at line 83 of file RunControlStateMachine.h.

◆ stateRunning()

virtual void ots::RunControlStateMachine::stateRunning ( toolbox::fsm::FiniteStateMachine & )

inlinevirtual

XDAQ applications are running.
Hardware is running.
Triggers are accepted.
Triggers are sent.
Data is sent / read out.

Reimplemented in ots::GatewaySupervisor, and ots::CoreSupervisorBase.

Definition at line 90 of file RunControlStateMachine.h.

◆ stateShutdown()

virtual void ots::RunControlStateMachine::stateShutdown ( toolbox::fsm::FiniteStateMachine & )

inlinevirtual

Power supplies are turned off.

Definition at line 99 of file RunControlStateMachine.h.

The documentation for this class was generated from the following files:

otsdaq/otsdaq/FiniteStateMachine/RunControlStateMachine.h
otsdaq/otsdaq/FiniteStateMachine/RunControlStateMachine.cc
